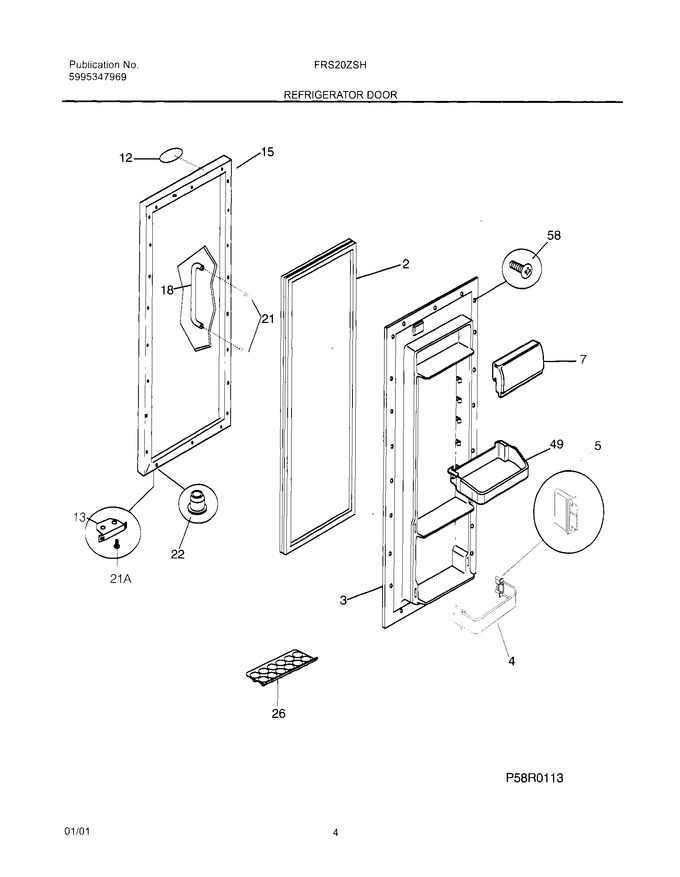

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734322		Gasket-refr Door, Black, Magnetic				$ 282.50
3	218749301		Panel-inner Door, Refr		Appelez-nous	-
4	218807016		Rack-door,(2)		Appelez-nous	-
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303308347		Door-dairy,12.96`` Wide		Appelez-nous	-
12	218395401		Nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	218618962		Panel-refr Door, Stainless Steel, W/foam Insulatn		Appelez-nous	-
18	218756501		Handle-door, Stainless Steel, With Insert		Appelez-nous	-
21	241501301		Screw,swageform ,10-32 X 0.750		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
