Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303289384 Gasket-frzr Door, Magnetic, White Special Order $ 141.75

5 5303288950 Support-door Rack, Rh/lh Special Order $ 51.19

8 215120600 Rack-door, W/ End Caps Appelez-nous -
9 215008201 Panel, Inner Door, Frzr Appelez-nous -
11 215121101 Panel-frzr Door, White Appelez-nous -
13 5303289522 Door Stop Special Order $ 40.17

17 215100001 Handle End, White Appelez-nous -
18 215068801 Handle-door, White Appelez-nous -
21 215732700 Screw-handle Mtg, Pan Head, 10-12 X 1/2 Appelez-nous -
22 5303289320 Bearing-hinge Special Order $ 19.69

37 215117404 Trim-handle, 13.69``, White, Upper Appelez-nous -
38 215117301 Band-decorative,handle Appelez-nous -
58 5308002748 Screw Appelez-nous -
*75594 5303917276 Insulation-door, Fiberglass, (bulk) Special Order $ 330.91

21A 215218600 Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4 Appelez-nous -
37A 215117403 Trim-handle, 29.41``, White, Lower Appelez-nous -
37A 215117207 Rail-handle Trim Mtg, 26.43``, Lower (non-illustrated) Appelez-nous -
37B 215117201 Rail-handle Trim Mtg, 11.95``, Upper (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

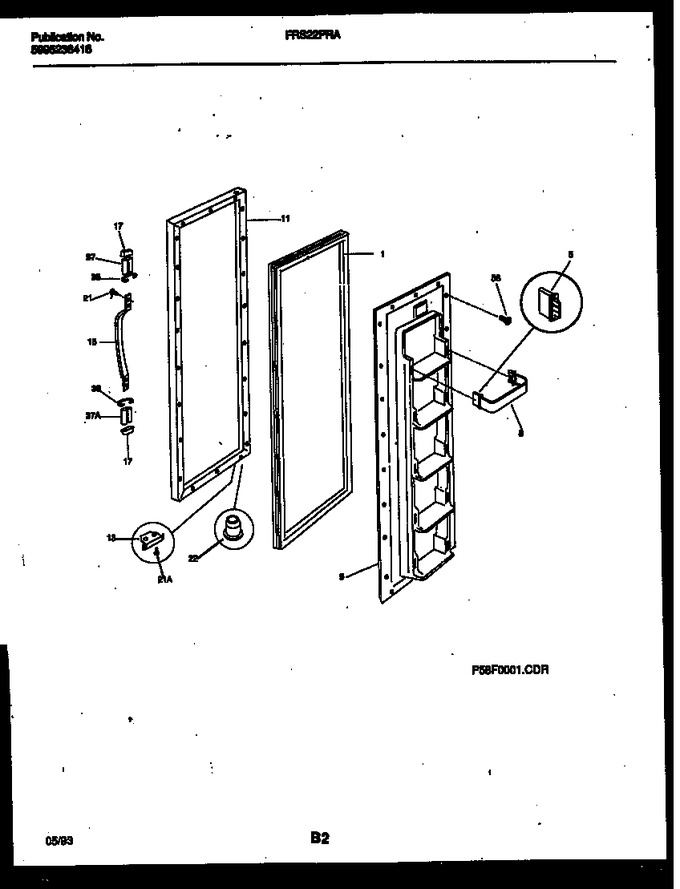

Diagram for FRS22PRAW2
