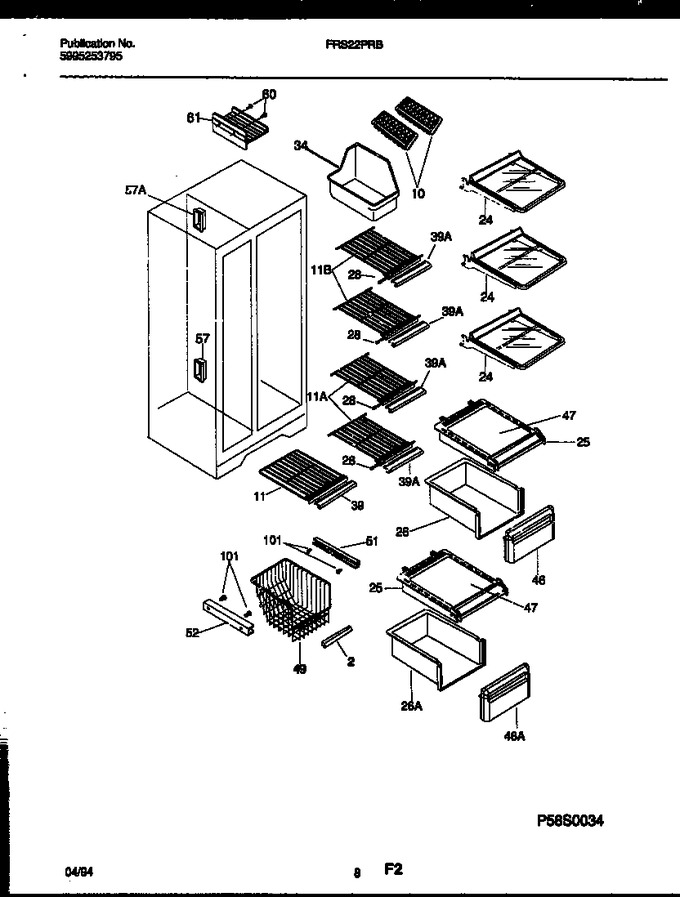

05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303289518		Shelf-freezer,sliding Wire		Appelez-nous	-
24	215406103		Shelf - ``spill-safe,`` Fixed, (3)		Appelez-nous	-
25	218147701		Cover-storage Pan,upper & Lower				$ 123.56
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		Cap-protector		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
39	215217543		Trim-frzr Shelf		Appelez-nous	-
46	5303296578		Front - Storage Pan, Upper		Appelez-nous	-
47	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
61	215781501		Shelf-ice Tray, Wire				$ 136.19
101	5308007097		Screw, Cr Truss Head, 8-15(a) X 3/4		Appelez-nous	-
*98111	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303289504		Shelf-freezer, Fixed Wire, (2)		Appelez-nous	-
11B	215111701		Shelf, Freezer, Fixed Wire, (2)		Appelez-nous	-
25A	5303289586		Trim-storage Pan Cvr, Upper & Lower (non-illustrated)		Appelez-nous	-
26A	5303289501		Pan-storage,lower				$ 164.85
39A	215217558		Trim-frzr Shelf		Appelez-nous	-
46A	5303296577		Front - Storage Pan, Lower		Appelez-nous	-
47A	215530500		Insert-pan Cover, Plastic, White (non-illustrated)		Appelez-nous	-
57A	5303289064		Ferrule-air		Appelez-nous	-
