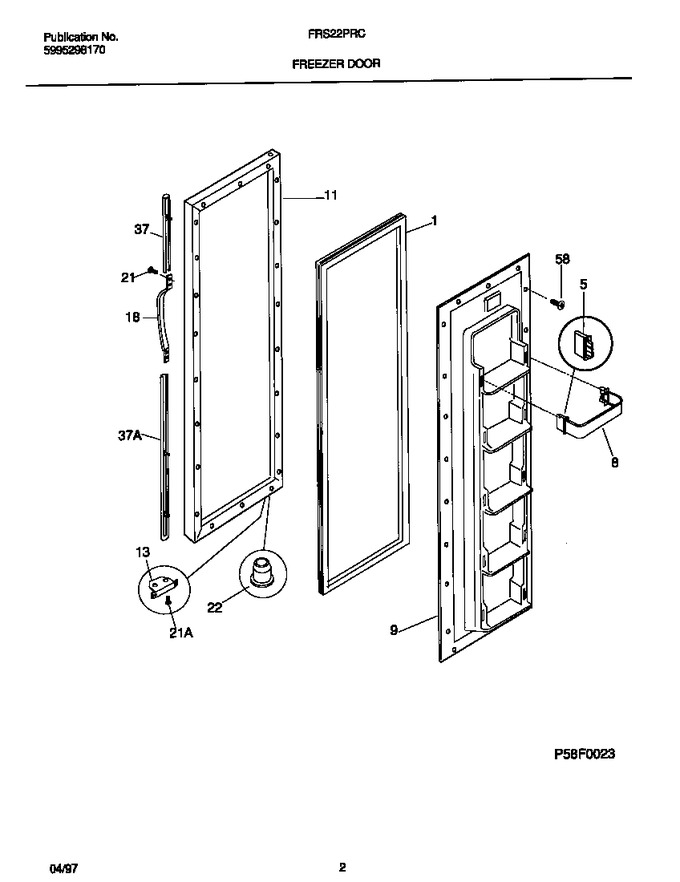

02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215734303 | Gasket-frzr Door, Almond, Magnetic |
|
- | |||||
| 5 | 5303288950 | Support-door Rack, Rh/lh |
|
$ 51.19 | |||||
| 8 | 218807012 | Rack-door, (5) |
|
- | |||||
| 9 | 215008201 | Panel, Inner Door, Frzr |
|
- | |||||
| 11 | 5303917968 | Panel-frzr Door, Almond, W/foam Insulatn |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 18 | 218762704 | Handle-door, Almond |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4, Bumper M |
|
$ 8.08 | |||||
| 21 | 218843801 | Screw (Replaces: 5303001001) |
|
$ 14.41 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215867074 | Trim-handle, Almond, Upper, W/chrome Band, And Snap Lock |
|
$ 76.91 | |||||
| 37 | 215867073 | Trim-handle, Almond, Lower, W/chrome Band, And Snap Lock |
|
$ 12.55 | |||||
| 58 | 218749600 | Screw, 10 Pan Head, 8-18 X 0.500 |
|
$ 5.15 | |||||
| *52680 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 37A | 215782300 | Lock-handle Trim, Snap-in (not Illustrated) |
|
$ 34.49 | |||||
| 37B | 215940700 | Lock-handle Trim, Stick-on (not Illustrated) |
|
- | |||||
| 37C | 218676001 | Band-decorative, Chrome (not Illustrated) |
|
$ 36.17 |
