SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System

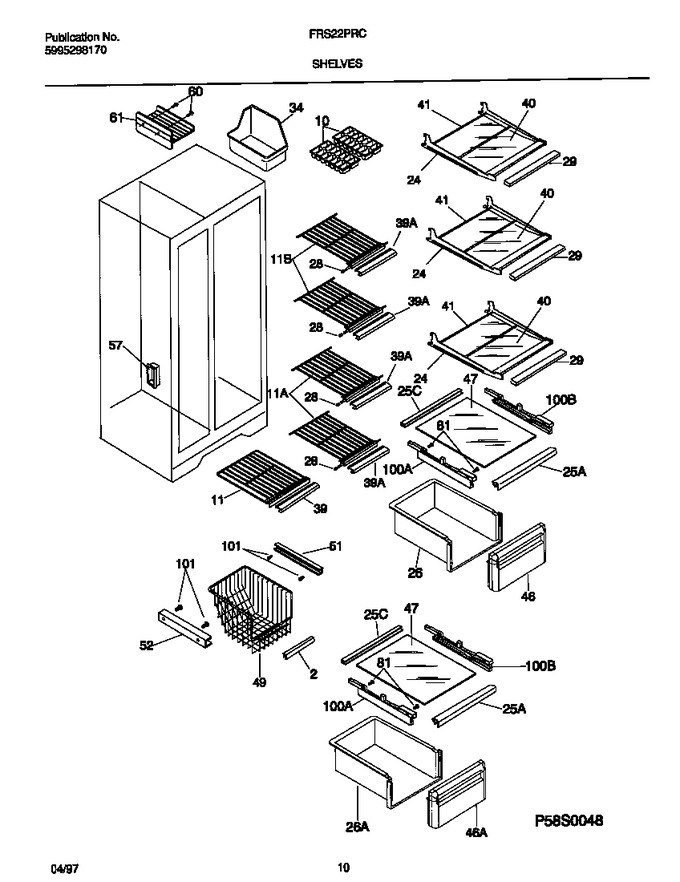

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	218298001		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
11	218390202		Shelf-freezer, Fixed, Wire		Appelez-nous	-
11	5303289504		Shelf-freezer, Fixed Wire		Appelez-nous	-
11	218159700		Spacer-shelf (not Illustrated)		Appelez-nous	-
24	215919137		Frame, Refr Shelf, Cantilever		Appelez-nous	-
25	218015302		Trim-storage Pan Cvr, Snap-on, Front		Appelez-nous	-
25	218015402		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303289501		Pan-storage,lower				$ 164.85
26	5303289500		Pan-storage,upper				$ 174.74
29	215919415		Trim-refr Shelf, Front, (3)				$ 57.59
34	5303212918		Container-ice				$ 104.66
39	215217543		Trim-frzr Shelf		Appelez-nous	-
39	215217558		Trim-frzr Shelf		Appelez-nous	-
40	218390581		Glass-refr Shelf, Clear, White Graphics, (3)		Appelez-nous	-
41	215919815		Trim-refr Shelf, Rear		Appelez-nous	-
46	5303309823		Front-storage Pan, Lower		Appelez-nous	-
46	5303309824		Front-storage Pan, Upper		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
61	215781501		Shelf-ice Tray, Wire				$ 136.19
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
100	218015601		Support-pan Cover, Rh				$ 55.18
100	218015501		Support-pan Cover, Lh				$ 37.26
101	5304455650		Screw, Hex Washer Head, 8-18ab X 3/4, Gusset/hanger   (Replaces: 215005000)				$ 14.18
*52686	215339900		Clip-shelf				$ 5.83
28A	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
28B	3201150		End Cap-shelf, Protector, Upper Fzr Shelf				$ 4.57
47A	218390588		Insert-pan Cover, White Graphics		Appelez-nous	-
47B	215723552		Insert-pan Cover, Glass, Clear				$ 77.10
