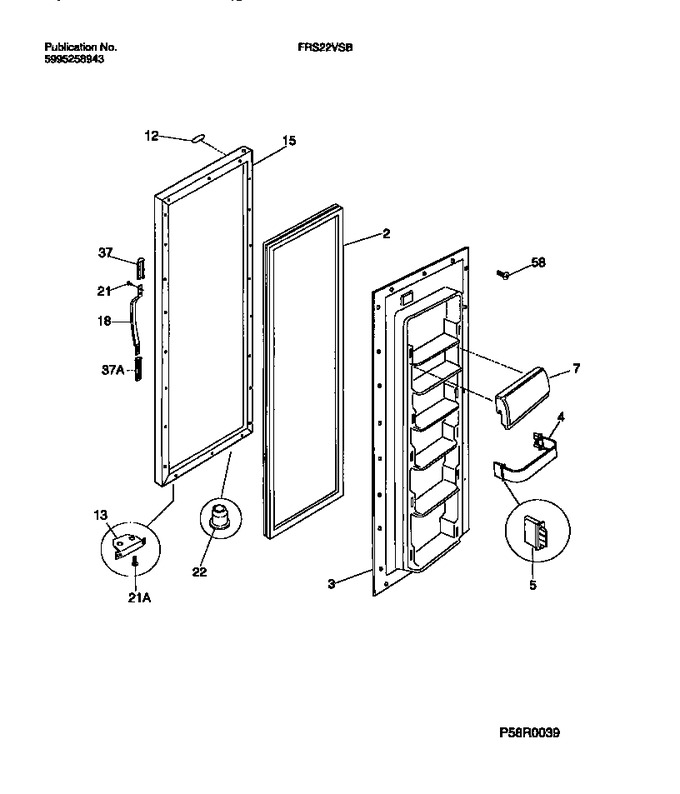

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734304		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215009801		Panel-inner Door,refr		Appelez-nous	-
4	215120400		Rack-door, W/end Caps				$ 113.56
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303304563		Door-dairy		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
15	218160511		Panel-refr Door,almond,w/foam Insulation		Appelez-nous	-
18	215826402		Handle-door , Almond		Appelez-nous	-
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303289320		Bearing-hinge				$ 19.69
37	215870605		Trim-handle,dark Putty,upper,w/chrome Band		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*26320	5303917276		Insulation - Door, Fiberglass, (bulk) (non-illustrated)				$ 330.91
21A	215218800		Screw-door Stop Mtg,torx Flat Head,10-16 X 3/4		Appelez-nous	-
37A	215870602		Trim-handle,dark Putty,lower,w/chrome Band		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
