SELECT A DIAGRAM

02 - Freezer Door Parts

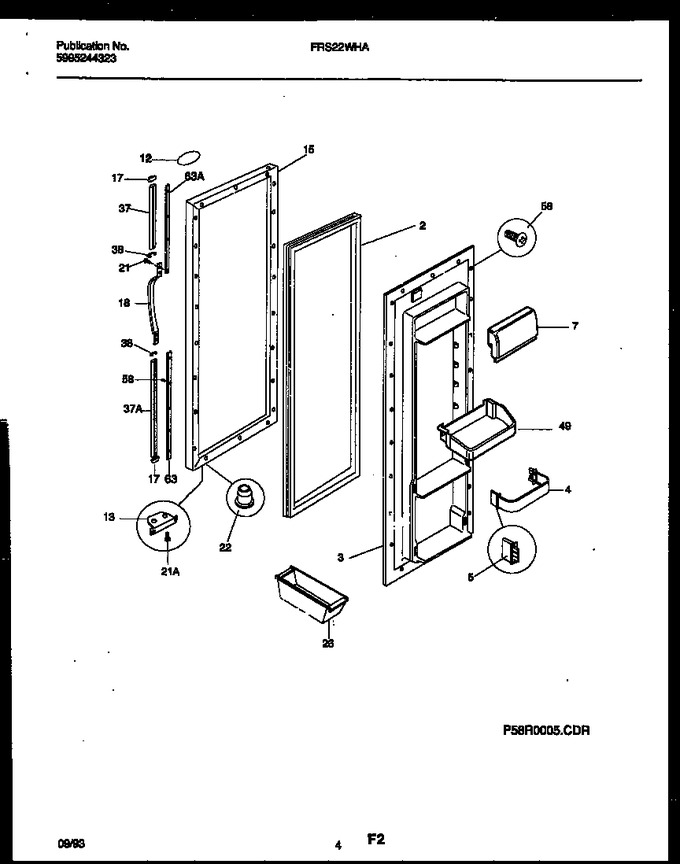

03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Cabinet Parts


06 - Shelves And Supports


07 - Refrigerator Control Assembly, Damp


08 - System And Automatic Defrost Parts


09 - System And Automatic Defrost Parts


10 - Ice Door, Dispenser And Water Tanks


11 - Ice Dispenser


12 - Ice Dispenser


13 - Ice Maker And Installation Parts


14 - Ice Maker And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, Magnetic, White				$ 243.34
3	215390401		Panel-inner Door,refr		Appelez-nous	-
4	215120400		Rack-door, W/end Caps				$ 113.56
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
7	5303289505		Door-dairy				$ 165.32
12	215008601		Nameplate Assy, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	215120901		Panel-refr Door, White, W/ Foam Insulatn		Appelez-nous	-
17	215100001		Handle End, White		Appelez-nous	-
18	215190401		Handle-door, White		Appelez-nous	-
21	215732700		Screw, Pan Head, 10-12 X 1/2		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	5303288969		Container-egg		Appelez-nous	-
37	215117404		Trim-handle, 13.69``, White, Upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
49	215441601		Bin-door, Gallon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215117207		Rail-handle Trim Mtg, 26.43``, Lower		Appelez-nous	-
*87460	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
37A	215117403		Trim-handle, 29.41``, White, Lower		Appelez-nous	-
63A	215117201		Rail-handle Trim Mtg, 11.95``, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
