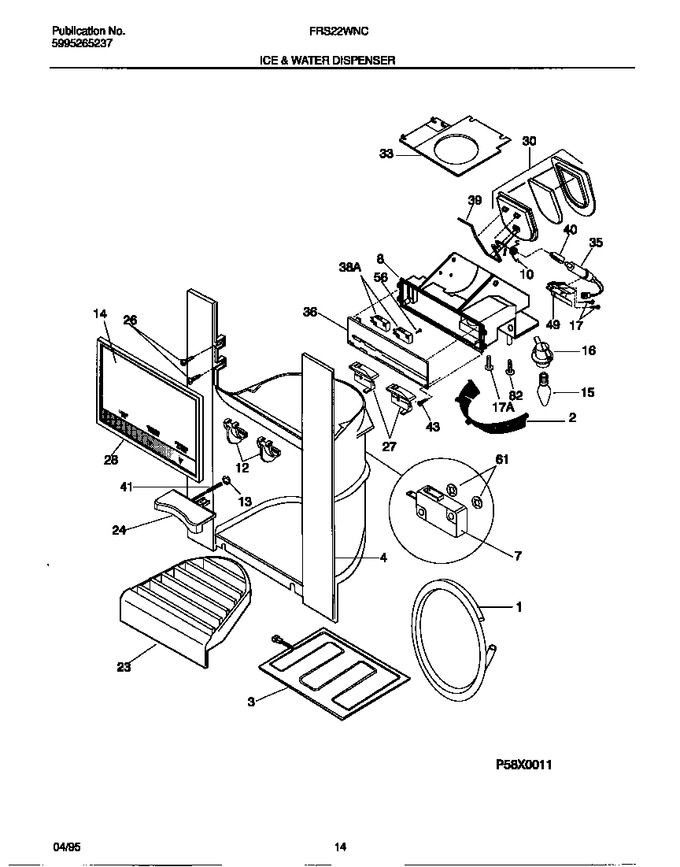

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215732101		Deflector-ice Disp,white		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
4	218432101		Housing-dispenser, White		Appelez-nous	-
8	218432301		Module-dispenser		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
12	215766501		Knob-selector,white		Appelez-nous	-
13	215748101		Ring-snap,actuator				$ 50.09
14	218429801		Label-module Cover, White		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	215794400		Screw,6 X 1/4		Appelez-nous	-
23	5303297844		Drip Tray,white				$ 50.03
24	215766301		Actuator,white		Appelez-nous	-
26	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
27	218432600		Cam-slide				$ 53.97
28	5303297846		Cover-module,white		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
33	218379901		Heater-disp Throat				$ 24.43
35	218284700		Heat Motor,115v		Appelez-nous	-
36	218432400		Cover-selector Sw		Appelez-nous	-
38	218479900		Switch-micro (2)				$ 57.65
39	218284600		Wire-ice Door		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	215765400		Spring-actuator				$ 78.96
43	215760300		Screw,4 X 3/8				$ 9.35
49	215794000		Bracket-heat Motor				$ 34.81
56	218434300		Screw-sel & Lite Sw, Pan Head, 4-24 X 9/16		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*96250	215781700		Clip-tube		Appelez-nous	-
*96251	218432502		Harness-wiring, Disp		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat (not Illustrated)		Appelez-nous	-
1A	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
1B	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
7A	218284800		Switch-actuator,micro		Appelez-nous	-
7B	215944300		Shield-micro Switch (not Illustrated)				$ 58.85

    View Diagram in Separate Window       Print Part List
