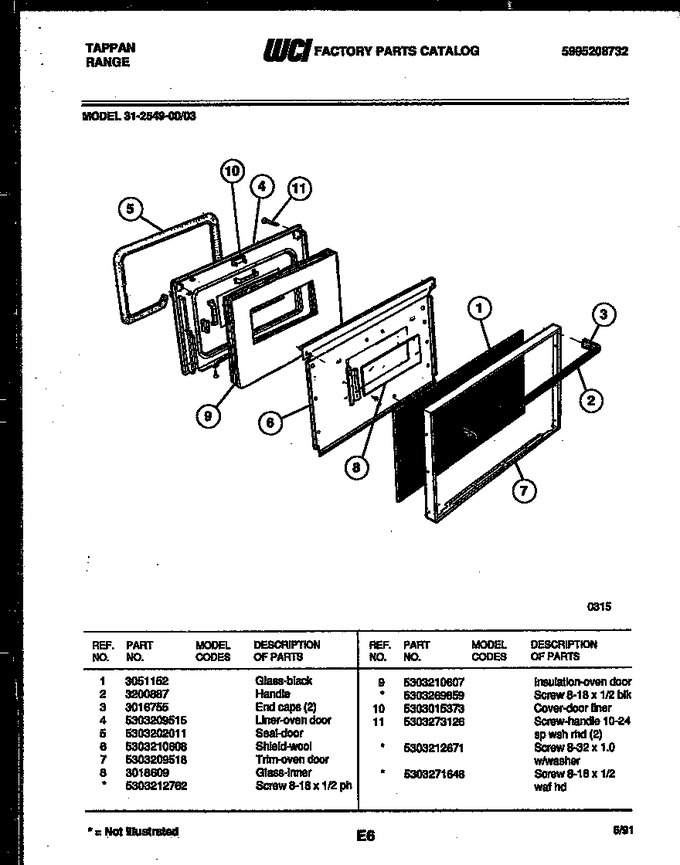

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3051152 Glass-black Appelez-nous -
2 3200887 Handle Appelez-nous -
3 3016755 End Caps (2) Appelez-nous -
4 5303209515 Liner-oven Door Appelez-nous -
5 5303202011 Seal, Door Special Order $ 166.84

6 5303210608 Shield-wool Appelez-nous -
7 5303209518 Trim-oven Door Appelez-nous -
8 3018609 Glass-inner Appelez-nous -
9 5303210607 Insulation, Oven Door Appelez-nous -
10 5303015373 Cover-door Liner Appelez-nous -
11 5303273126 Screw Handle 10-24 Sp Wsh Rhd (2) Appelez-nous -
*52617 5303271648 Screw 8-18 X 1/2 Waf Hd In-Stock Immediately $ 13.46

*52617 5303212671 Screw-8-32 X 1.0 W/ Washer Appelez-nous -
8A 5303212762 Screw 8-18 X 1/2 Ph (non-illustrated) Appelez-nous -
9A 5303269859 Screw 8-18 X 1/2 Blk (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
