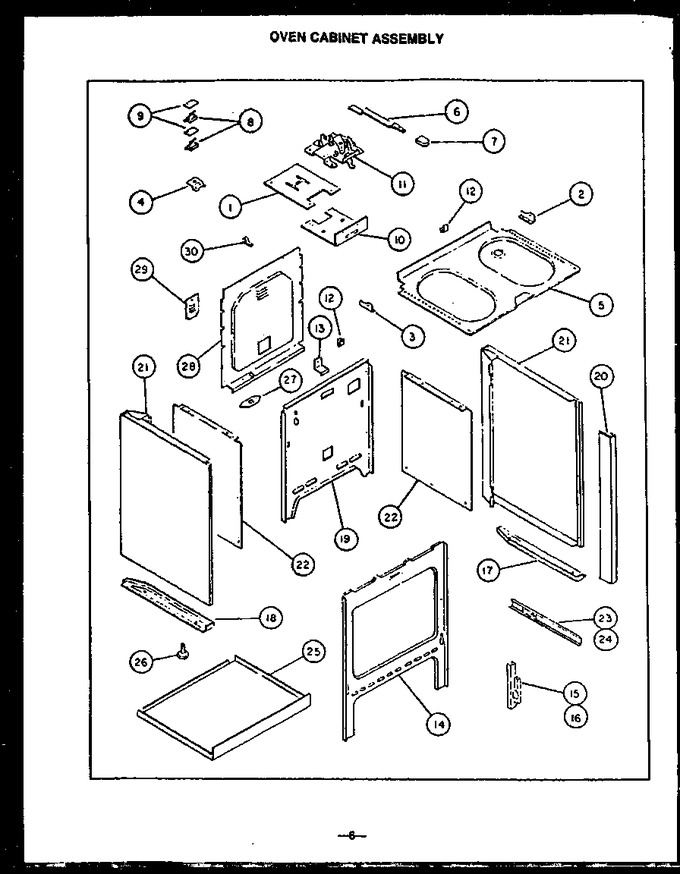

03 - Oven Cabinet Assy


04 - Oven Door Parts


05 - Page 2


06 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0063353		Retainer, Oven Light		Appelez-nous	-
2	Y0066374		Hinge, Lower, Main Top		Appelez-nous	-
3	Y0066374		Hinge, Lower, Main Top		Appelez-nous	-
4	Y0068091		Bracket, Switch Mounting		Appelez-nous	-
5	059456Y		Sub 59456cg, Drip Baffle		Appelez-nous	-
6	Y0065779		Latch Arm Black		Appelez-nous	-
7	Y0067844		Knob, Latch - Black		Appelez-nous	-
8	Y0065780		Switch, Clean Circuit				$ 11.77
9	Y0091523		Insulation, Esm		Appelez-nous	-
10	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
11	Y0063733		Latch Assembly		Appelez-nous	-
12	Y0091587		Cable, Clip Esm		Appelez-nous	-
13	0061384		Bracket, Switch Mtg.		Appelez-nous	-
15	Y0067795		Kit, Door Hinge(rh-ss)		Appelez-nous	-
16	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
17	Y0058991		Brace, Leveling Leg (lt)		Appelez-nous	-
18	Y0058992		Brace, Leveling Leg (lt)		Appelez-nous	-
19	0058897		Ins. Retainer, Rear		Appelez-nous	-
20	0300721		Trim, Side Panel, Lh		Appelez-nous	-
20	Y0300722		Trim, Side Panel, Rh		Appelez-nous	-
21	W10124825		Side Panel - Almond		Appelez-nous	-
21	W10124826		Side Panel - White		Appelez-nous	-
22	Y0058999		Insulation Retainer, Side		Appelez-nous	-
23	0300475		Track, Storage Drawer-r.h.		Appelez-nous	-
24	Y0300474		Track, Storage Drawer-l.h.		Appelez-nous	-
25	Y0057531		Ins. Retainer, Bottom		Appelez-nous	-
26	Y0300585		Leg, Leveling		Appelez-nous	-
27	0058311		Plate, Main Inlet Wire		Appelez-nous	-
28	Y0058434		Cover, Rear		Appelez-nous	-
29	Y0058435		Access Plate, Rear		Appelez-nous	-
30	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
NI	0060237		Support, Circ Board		Appelez-nous	-
NI	Y0058895		Heat Shield		Appelez-nous	-
