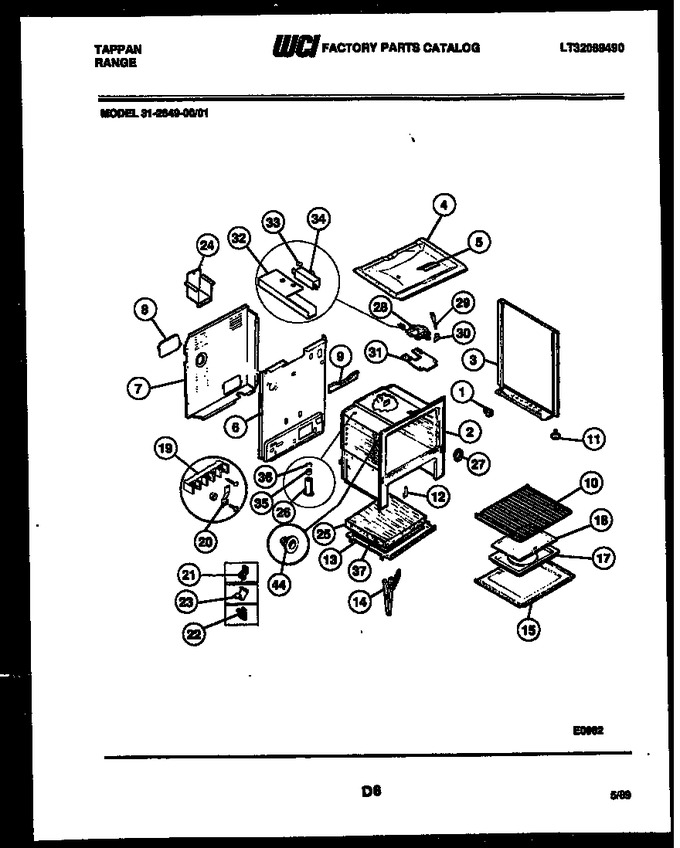

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3200792 | Panel, Bodyside (lh) White |
|
- | |||||
| 4 | 3051109 | Burner Box |
|
- | |||||
| 5 | 3131101 | Cover, Plate |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Shield-lwr |
|
- | |||||
| 8 | 3203405 | Cover, Lwr. Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 3131973 | Rack-oven |
|
- | |||||
| 11 | 3203397 | Screw, Level (4) |
|
- | |||||
| 12 | 3131570 | Cvr-hng Cutout |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lwr |
|
- | |||||
| 14 | 3131569 | Channel-door Hng (2) |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 17 | 3013568 | Broiler Pan |
|
- | |||||
| 18 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 19 | 3161116 | Terminal Block |
|
- | |||||
| 20 | 08011708 | Ground Strap |
|
- | |||||
| 21 | 3011805 | Clip-thermal Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 3203582 | Shield-rear Wall |
|
- | |||||
| 25 | 3200847 | Insulation, Lower |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3051218 | Plate-ov. Lt. |
|
- | |||||
| 28 | 3015361 | Latch Door |
|
- | |||||
| 29 | 3131357 | Handle, Latch |
|
- | |||||
| 30 | 358T158P02 | Knob, Latch |
|
- | |||||
| 31 | 3051413 | Shield-latch |
|
- | |||||
| 32 | 3131593 | Shield, Bi Metal Latch |
|
- | |||||
| 33 | 3051733 | Fastener, Push On (3) |
|
- | |||||
| 34 | 3131672 | Switch, Latching |
|
- | |||||
| 35 | 08067810 | Filter-catalyst |
|
- | |||||
| 36 | 08010606 | Retainer-catalyst |
|
- | |||||
| 37 | 3200848 | Shield-heat Lwr |
|
- | |||||
| *26492 | 3203550 | Button-plug (2) |
|
Immediately | $ 15.22 | ||||
| *26492 | 3934056 | Anti-tip Kit |
|
- | |||||
| *26492 | 3200846 | Fastener-edge Mtg (2) |
|
- | |||||
| *26492 | 3200834 | Shield Heat Bodyside (2) |
|
- | |||||
| *26492 | 3200833 | Insulation, Wrap |
|
- | |||||
| *26492 | 3131304 | Insulation-top |
|
- | |||||
| *26492 | 3204525 | Bracket-cable Mtg |
|
- | |||||
| 27A | 3131304 | Insulation-top (non-illustrated) |
|
- | |||||
| 27B | 3204582 | Insulation-back (non-illustrated) |
|
- | |||||
| 27C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 30A | 08013188 | Screw, Set, 10-24 X 3/16, Latch Knob |
|
- | |||||
| 3A | 3200789 | Panel, Bodyside (rh) White |
|
- |
