01 - Control Panel Parts


02 - Electrical Components


03 - Lower Oven Cabinet Assy

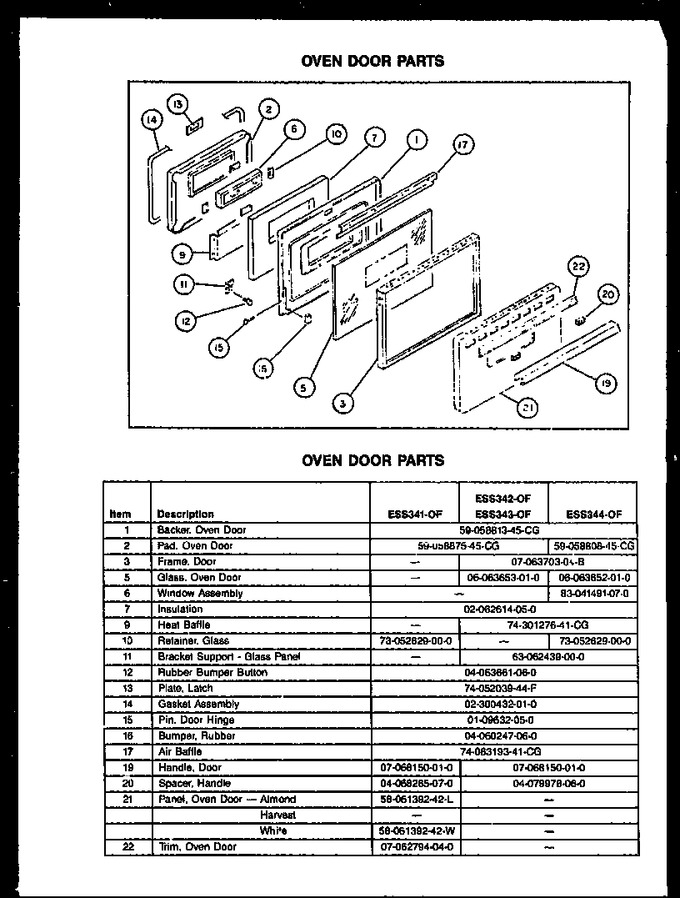

04 - Oven Door Parts


05 - Page 1


06 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124801		Backer, Oven Door		Appelez-nous	-
2	W10124804		Pad, Oven Door		Appelez-nous	-
7	0062614		Insulation,door-sub Backer		Appelez-nous	-
10	Y0052629		Retainer, Door Glass		Appelez-nous	-
12	Y0063661		Bumper, Oven Door		Appelez-nous	-
13	Y0052039		Latch Plate		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	Y0109632050		Pin, Door Hinge		Appelez-nous	-
16	Y0060247		Bumper, Rubber		Appelez-nous	-
17	0063193		Plate, Air Baffle		Appelez-nous	-
19	0068150		Handle, Door		Appelez-nous	-
20	0068285		Spacer, Door Handle		Appelez-nous	-
21	Y061392L		Panel, Oven Door W/o Window		Appelez-nous	-
21	Y00000000		See Note Panel, Oven Door - Harvest		Appelez-nous	-
21	061392W		Panel, Oven Dr. W/o Window		Appelez-nous	-
22	Y0062794		Trim, Door		Appelez-nous	-
