SELECT A DIAGRAM

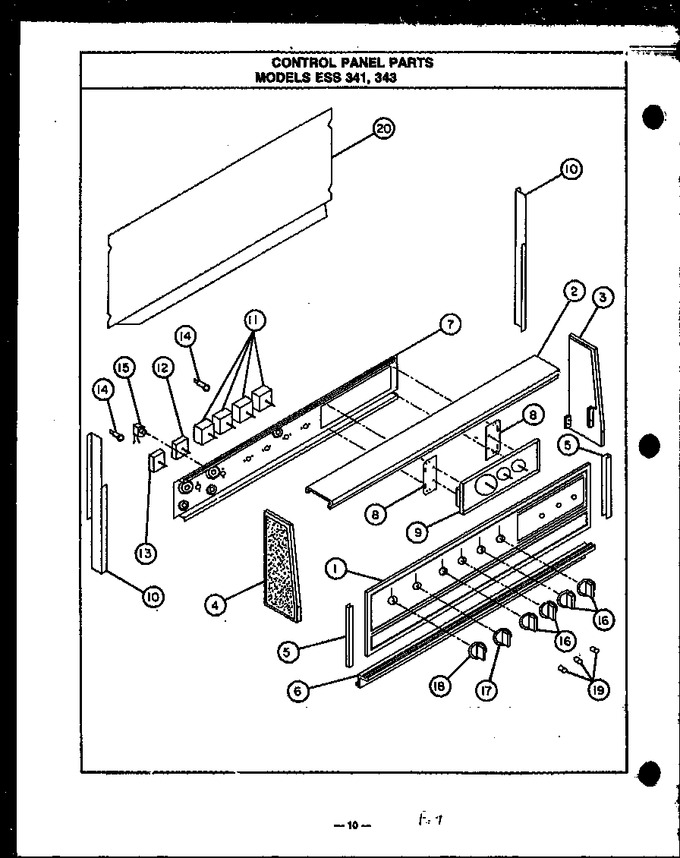

01 - Control Panel Parts


02 - Electrical Components


03 - Lower Oven Cabinet Assy


04 - Oven Door Parts


05 - Page 1


06 - Upper Oven Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0060178		Glass, Control Panel		Appelez-nous	-
2	0060623		Trim, Top, Backguard		Appelez-nous	-
3	0060696		Sub 301002, End Cap Bkgd. R.h.		Appelez-nous	-
4	Y0060695		End Cap, Bkgd L.h.		Appelez-nous	-
5	0063575		Channel, Glass		Appelez-nous	-
6	0061244		Trim Piece, Lower		Appelez-nous	-
7	0061239		Sub 58824, Backguard Panel		Appelez-nous	-
8	0061264		Bracket, Clock Mtg.		Appelez-nous	-
9	0060171		Clock, Analog		Appelez-nous	-
10	Y0060951		Support, Backguard		Appelez-nous	-
11	0071745		Switch, Infinite		Appelez-nous	-
12	Y0063008		Switch, Selector		Appelez-nous	-
13	Y0063416		Thermostat		Appelez-nous	-
14	Y0071820		Indicator Light		Appelez-nous	-
15	0065951		Kit, Light Switch		Appelez-nous	-
16	Y0060235		Knob, Top Element		Appelez-nous	-
17	0060236		Selector Knob		Appelez-nous	-
18	0059909		Knob, Oven Control/thermostat		Appelez-nous	-
19	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
20	Y0061142		Rear Cover Plate		Appelez-nous	-
NI	65052		Speed Nut		Appelez-nous	-
NI	65051		Bezel, Switches				$ 11.25

    View Diagram in Separate Window       Print Part List
