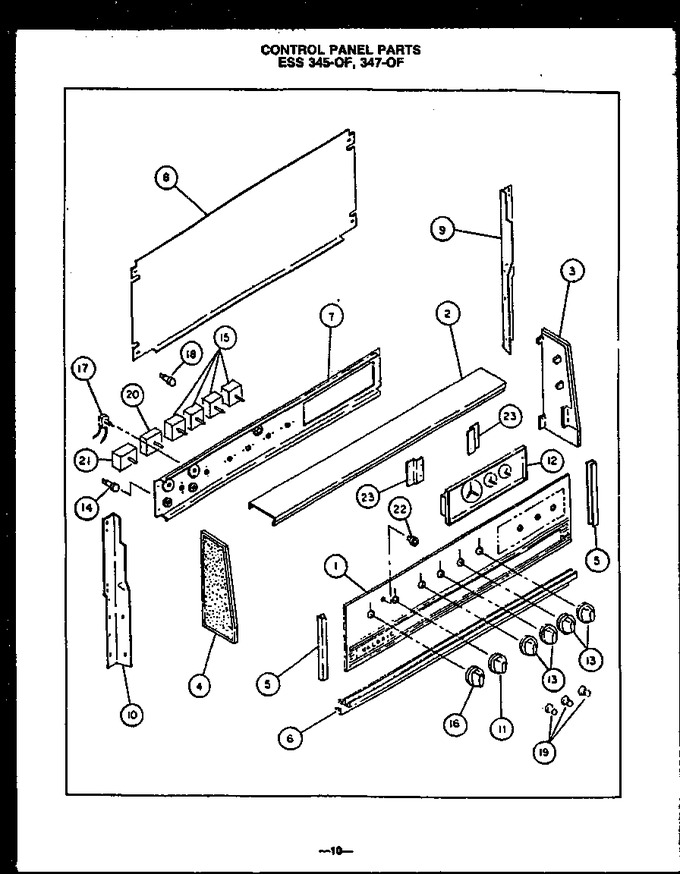

01 - Control Panel Parts


02 - Electrical Components


03 - Electrical Components


04 - Oven Cabinet Assy


05 - Oven Door Parts


06 - Page 1


07 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0060177		Glass, Backguard		Appelez-nous	-
2	0060623		Trim, Top, Backguard		Appelez-nous	-
3	0301002		End Cap, Bkgd.-r.h.		Appelez-nous	-
4	0301001		End Cap, Bkgd.- L.h.		Appelez-nous	-
5	0063575		Channel, Glass		Appelez-nous	-
6	Y0060632		Trim Piece, Lower		Appelez-nous	-
7	0058824		Control Pnl, Backguard		Appelez-nous	-
8	0058886		Cover, Backguard		Appelez-nous	-
9	Y0058920		Support, Backguard Rt		Appelez-nous	-
10	Y0058919		Support Backguard Lh		Appelez-nous	-
11	0060236		Selector Knob		Appelez-nous	-
12	0060192		Clock - Timer		Appelez-nous	-
13	Y0060235		Knob, Top Element		Appelez-nous	-
14	Y0071820		Indicator Light		Appelez-nous	-
15	0071745		Switch, Infinite		Appelez-nous	-
16	0059909		Knob, Oven Control/thermostat		Appelez-nous	-
17	0060303		Kit, Light Switch		Appelez-nous	-
18	Y0071820		Indicator Light		Appelez-nous	-
19	Y0042633		Knob, Clock W/o Spring		Appelez-nous	-
20	Y0063008		Switch, Selector		Appelez-nous	-
21	Y0063416		Thermostat		Appelez-nous	-
22	0065051		Bezel, Panel Switch		Appelez-nous	-
23	0061264		Bracket, Clock Mtg.		Appelez-nous	-
NI	Y0065052		Speednut		Appelez-nous	-
