SELECT A DIAGRAM

01 - Control Panel Parts


02 - Oven Cabinet Assy


03 - Oven Door Parts


04 - Page 1


05 - Storage Drawer Parts

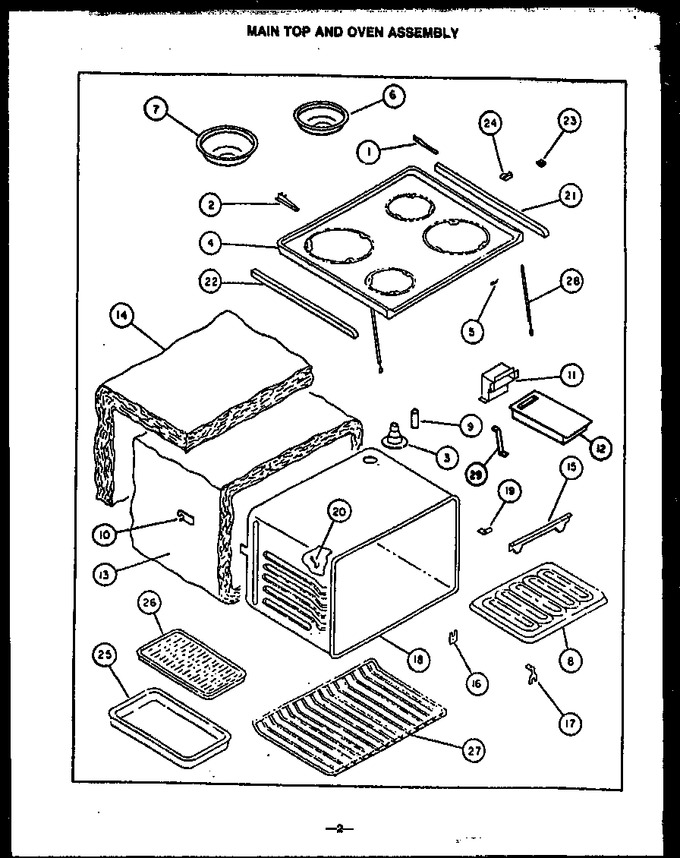

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0091517		Bracket Assembly		Appelez-nous	-
2	0091518		Bracket Assembly		Appelez-nous	-
3	Y0058526		Smoke Eliminator		Appelez-nous	-
4	0059465		Main Top - Almond		Appelez-nous	-
5	0071668		Pin, Support Rod		Appelez-nous	-
6	WPW10196406		Bowl, Drip (6`` W/hole-chr)   (Replaces: Y0058591)			Immediately	$ 12.05
7	X042142		Pkg. 160, B.b. 8``		Appelez-nous	-
8	Y0061781		Reflector, Broil Element		Appelez-nous	-
9	0060633		Tube, Vent Extension		Appelez-nous	-
10	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
11	Y0060631		Flue Box		Appelez-nous	-
12	Y0060627		Flue Box		Appelez-nous	-
13	0300973		Insulation, Wrapper		Appelez-nous	-
14	Y0300974		Insulation, Rear		Appelez-nous	-
15	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
16	Y0063351		Capillary Hole Cover		Appelez-nous	-
17	0061556		Bracket, Mounting		Appelez-nous	-
18	W10124600		Oven Shell		Appelez-nous	-
19	0300278		Chip Cover		Appelez-nous	-
20	Y0067053		Clip, Thermo Capillary		Appelez-nous	-
21	0060562		Trim, Main Top, Rh		Appelez-nous	-
22	Y0060563		Trim, Main Top, Lh		Appelez-nous	-
23	Y0096604		Nut, Type ``u``		Appelez-nous	-
24	0071203		Wire Clamp		Appelez-nous	-
25	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
26	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
27	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
28	Y0091542		Support, Maintop		Appelez-nous	-
29	Y0060312		Bracket, Support		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
