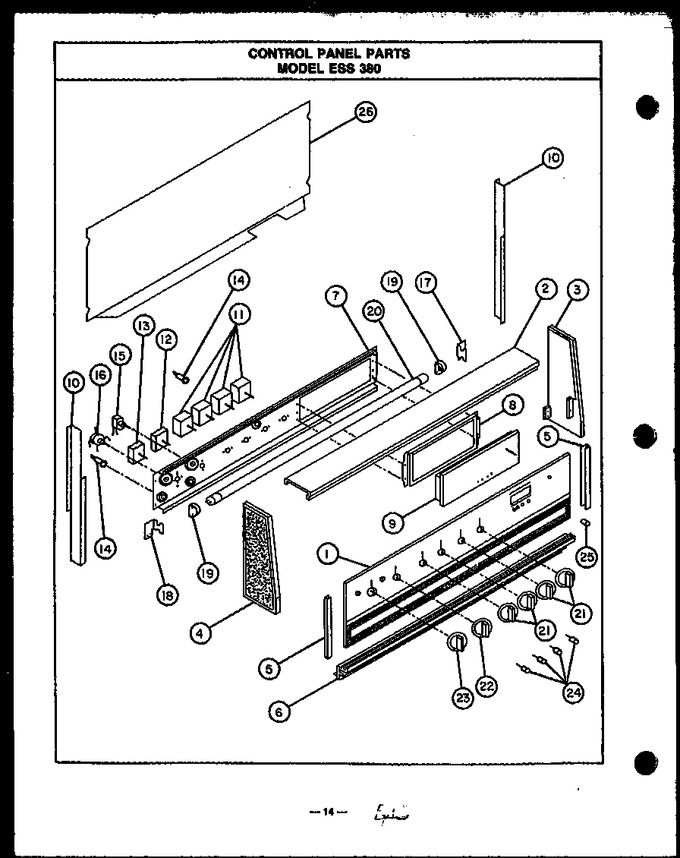

01 - Control Panel Parts


02 - Electrical Components


03 - Lower Oven Cabinet Assy


04 - Oven Door Parts


05 - Page 1


06 - Upper Oven Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0060744		Glass, Backguard		Appelez-nous	-
2	0060623		Trim, Top, Backguard		Appelez-nous	-
3	0060696		Sub 301002, End Cap Bkgd. R.h.		Appelez-nous	-
4	Y0060695		End Cap, Bkgd L.h.		Appelez-nous	-
5	0063575		Channel, Glass		Appelez-nous	-
6	Y0060632		Trim Piece, Lower		Appelez-nous	-
7	0060745		Backguard, Control Panel		Appelez-nous	-
8	Y0060743		Bracket, Clock Mtg.		Appelez-nous	-
9	Y0060239		Timer, Electronic		Appelez-nous	-
10	Y0060951		Support, Backguard		Appelez-nous	-
11	0071745		Switch, Infinite		Appelez-nous	-
12	Y0063008		Switch, Selector		Appelez-nous	-
13	0060524		Control, Elec Thermostat		Appelez-nous	-
14	Y0071820		Indicator Light		Appelez-nous	-
15	0065951		Kit, Light Switch		Appelez-nous	-
16	W10126545		Switch, Flourescent		Appelez-nous	-
17	0061242		Bracket, Lamp Socket, R.h.		Appelez-nous	-
18	0061241		Bracket, Lamp Socket, L.h.		Appelez-nous	-
19	Y0071924		Light Socket		Appelez-nous	-
20	WPY0067945		Lamp, Flourescent   (Replaces: Y0067945)				$ 29.33
21	Y0060235		Knob, Top Element		Appelez-nous	-
22	0060236		Selector Knob		Appelez-nous	-
23	0060234		Knob, Oven Control		Appelez-nous	-
24	0060731		Button, Timer		Appelez-nous	-
25	Y0060730		Knob, Clock		Appelez-nous	-
26	Y0060626		Rear Cover Plate		Appelez-nous	-
NI	65051		Bezel, Switches				$ 11.25
NI	65052		Speed Nut		Appelez-nous	-
