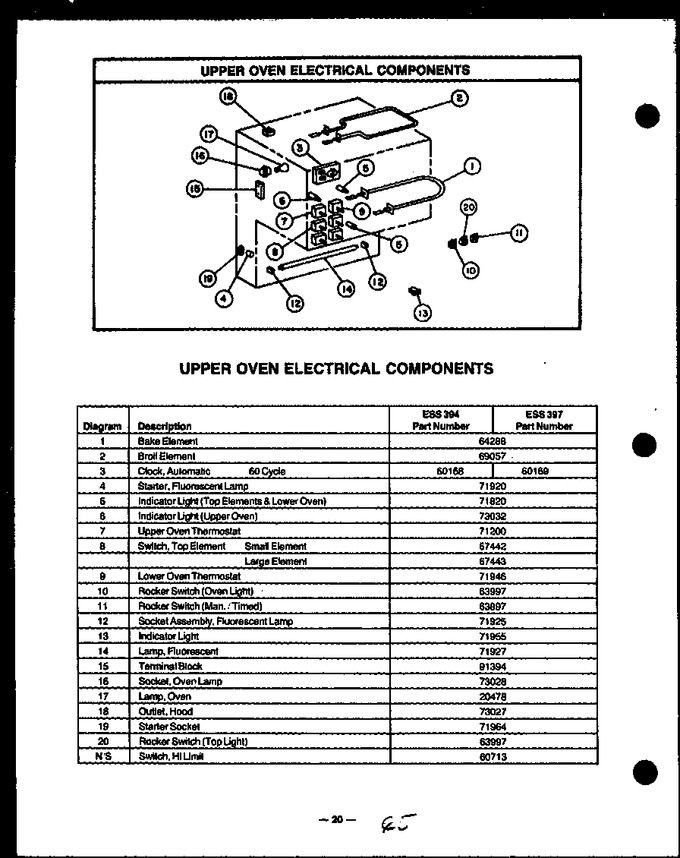

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	64288		Bake Element		Appelez-nous	-
2	Y69057		Broil Element		Appelez-nous	-
3	Y60168		Panel,graphic		Appelez-nous	-
4	71920		Starter		Appelez-nous	-
5	Y71820		Indicator Light		Appelez-nous	-
6	73032		Glass Splasher		Appelez-nous	-
7	587290004		Upper Oven Thermostat   (Replaces: 71200)		Appelez-nous	-
8	67443		Switch, Infinite, 8-inch		Appelez-nous	-
8	67442		Switch, Infinite, 6-inch		Appelez-nous	-
9	Y71946		Thermostat, Lower Oven		Appelez-nous	-
10	Y63997		Switch, Oven Light		Appelez-nous	-
11	Y63997		Switch, Oven Light		Appelez-nous	-
12	71925		Socket Assembly, Flourescent L		Appelez-nous	-
13	Y71955		Indicator Light		Appelez-nous	-
14	Y71927		Lamp, Flourescent		Appelez-nous	-
15	0091394		Terminal Block		Appelez-nous	-
16	73028		Fastener		Appelez-nous	-
17	8009		Bulb - Light   (Replaces: 20478)			Immediately	$ 16.80
18	1N4004		Outlet, Motor   (Replaces: 73027)		Appelez-nous	-
19	Y71964		Socket Starter		Appelez-nous	-
20	Y63997		Switch, Oven Light		Appelez-nous	-
NI	60713		Hi-limit Thermostat		Appelez-nous	-
