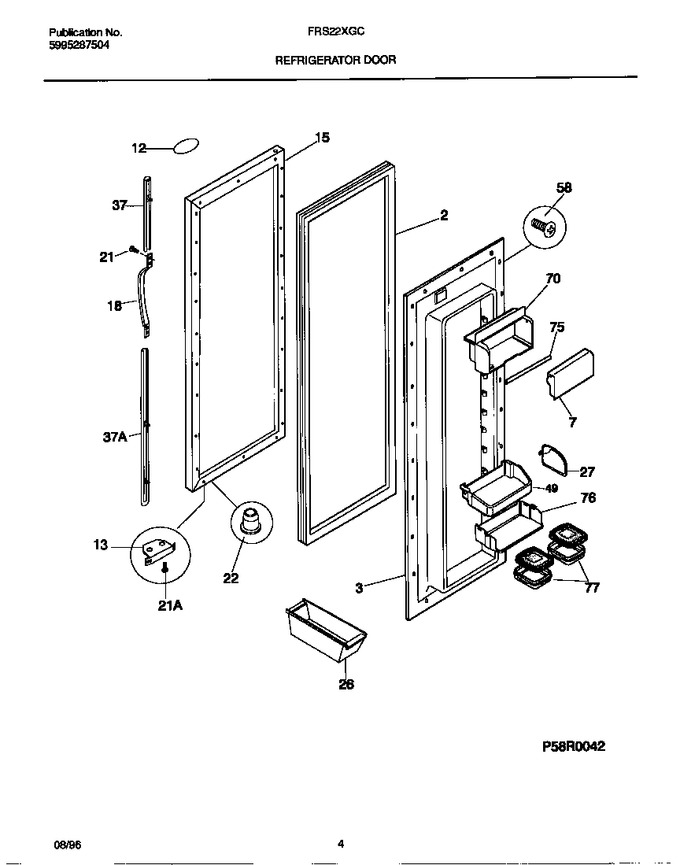

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734304		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215353101		Panel-inner Door, Refr		Appelez-nous	-
7	218383101		Door-dairy		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
12	215008605		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917499		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
18	218025204		Handle-door, Almond, Soft Grip		Appelez-nous	-
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370001		Snugger-door Bin, ``paddle Type``, 2-liter Dr Bin		Appelez-nous	-
37	215867062		Trim-handle, Almond, Lower, W/dec Gold Band, And Snap Lo				$ 114.03
37	215867065		Trim-handle, Almond, Upper, W/dec Gold Band, And Snap Lo		Appelez-nous	-
49	218592311		Bin-door, 2-liter, With Trim		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
70	218383201		Housing-dairy Compt		Appelez-nous	-
75	218431100		Bumper-dairy Door		Appelez-nous	-
76	218423800		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*31005	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*31006	215782300		Lock-handle Trim,snap-in				$ 34.49
*31007	218676002		Band-decorative, Light Gold		Appelez-nous	-
*31008	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
