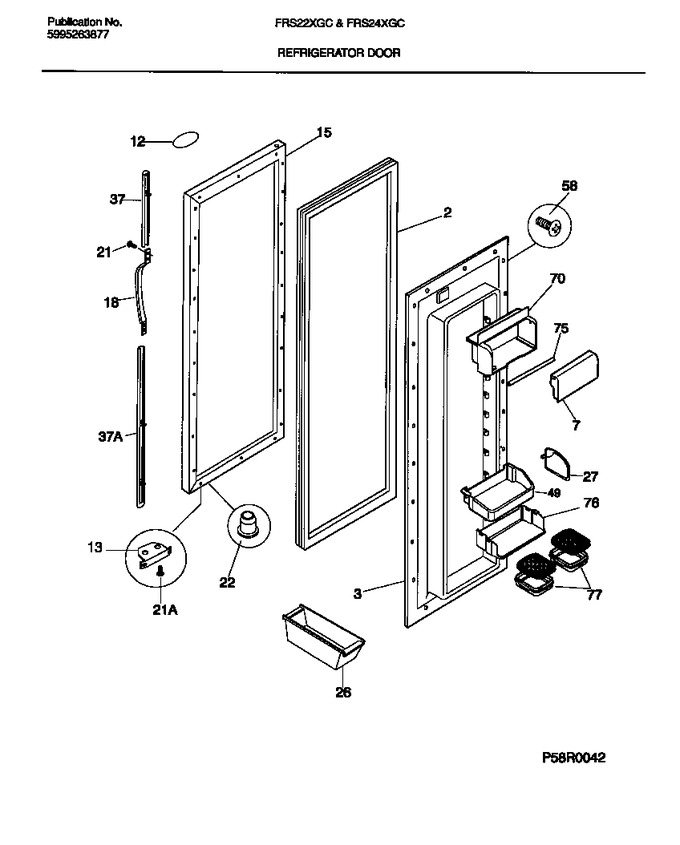

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	215734314		Gasket-refr Door, White, Magnetic				$ 243.34
3	215353101		Panel-inner Door, Refr		Appelez-nous	-
7	218383101		Door-dairy		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008604		Label-nameplate, White (not Illustrated)		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
15	5303917498		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
18	218025201		Handle-door, White, Soft Grip		Appelez-nous	-
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370001		Snugger-door Bin, ``paddle Type``		Appelez-nous	-
37	215867031		Trim-handle, 14.12``, White, Upper, W/gold Band, And Snap		Appelez-nous	-
37	215867028		Trim-handle, 29.84``, White, Lower, W/gold Band, And Snap		Appelez-nous	-
49	218439604		Bin-door, 2-liter, With Trim		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
70	218383201		Housing-dairy Compt		Appelez-nous	-
75	218431100		Bumper-dairy Door		Appelez-nous	-
76	218423800		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*68683	215782300		Lock-handle Trim, Snap-on				$ 34.49
*68684	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
