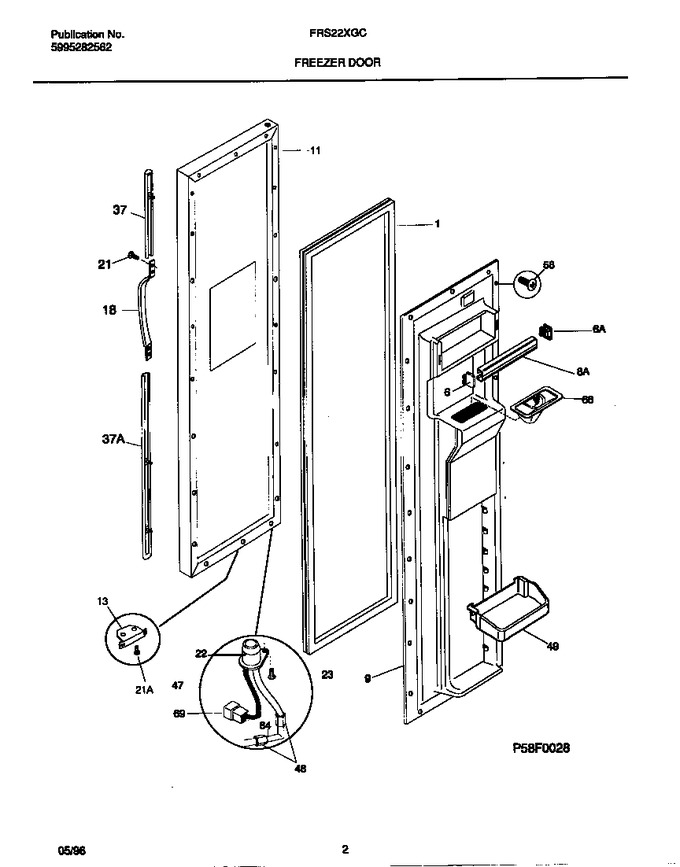

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Container/drive


10 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
6	5303297813		Support-door Rack, Lh				$ 49.77
6	5303297814		Support-door Rack, Rh				$ 52.50
8	215474038		Rack-door		Appelez-nous	-
9	218510501		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917662		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218025201		Handle-door, White, Soft Grip		Appelez-nous	-
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215867061		Trim-handle, White, Lower, W/dec Gold Band, And Snap Loc		Appelez-nous	-
37	215867064		Trim-handle, White, Upper, W/dec Gold Band, And Snap Loc				$ 11.39
47	218485100		Harness-wiring, Frzr Door		Appelez-nous	-
48	5308000200		Nut, 7/16 X 20, Nylon		Appelez-nous	-
49	218592309		Bin-door, With Trim		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
68	218020600		Chute-ice		Appelez-nous	-
69	215341900		Connector-door Harn		Appelez-nous	-
84	5308010289		Elbow-water Tube				$ 45.84
*45200	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*45201	215782300		Lock-handle Trim,snap-in				$ 34.49
*45202	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*45203	218676002		Band-decorative, Light Gold		Appelez-nous	-
*45204	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
