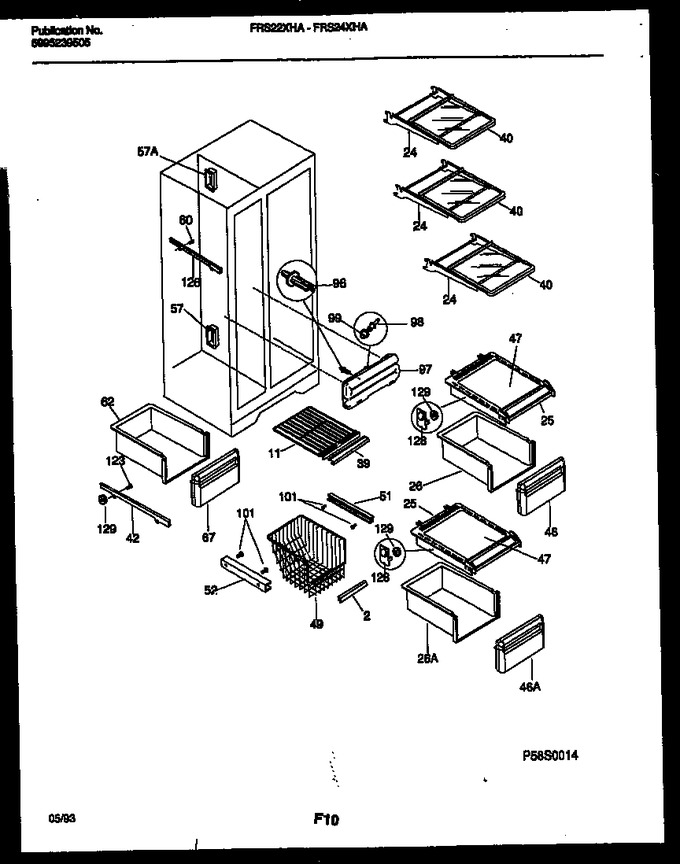

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303298147 | Trim-basket |
|
$ 60.38 | |||||
| 11 | 5303289518 | Shelf-freezer, Sliding Wire, (2) |
|
- | |||||
| 24 | 215019701 | Frame-cantilever, Spill-safe Shlf, (3) |
|
$ 144.80 | |||||
| 25 | 5303289587 | Cover-storage Pan, Upper & Lower, (2) |
|
- | |||||
| 26 | 5303289500 | Pan-storage, Upper (Replaces: 5303299657) |
|
$ 174.74 | |||||
| 39 | 215217543 | Trim-frzr Shelf, (2) |
|
- | |||||
| 40 | 215036600 | Shelf-``spill-safe``, Sliding, (3) |
|
- | |||||
| 42 | 215002301 | Hanger-deli Tray, Lh |
|
$ 65.82 | |||||
| 46 | 5303289498 | Front-storage Pan, Upper |
|
- | |||||
| 47 | 5303289386 | Insert-crisper Cvr, Glass, With White Dots |
|
- | |||||
| 49 | 5303289521 | Basket-sliding, (2) |
|
$ 239.40 | |||||
| 51 | 5303288960 | Hanger-basket, Rh |
|
$ 70.77 | |||||
| 52 | 5303296810 | Hanger-basket, Lh |
|
- | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 62 | 5303289517 | Tray - Deli |
|
$ 133.19 | |||||
| 67 | 5303289506 | Front-deli Tray |
|
- | |||||
| 96 | 215192600 | Support - Water Tank |
|
$ 10.71 | |||||
| 97 | 5303918258 | Water Tank Assy, Includes Tank, Grommets, Connectors (Replaces: 215230300) |
|
$ 121.63 | |||||
| 98 | 5308015614 | Connector - Tube |
|
$ 34.57 | |||||
| 99 | 5300186057 | Grommet-tank |
|
$ 28.98 | |||||
| 101 | 5308007097 | Screw, Cr Truss Head, 8(a) X 3/4 |
|
- | |||||
| 123 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| 126 | 215205400 | Rail-auger Bucket,lh |
|
$ 64.00 | |||||
| 128 | 215003701 | Support-roller Mtg |
|
- | |||||
| 129 | 5303299152 | Roller-hanger |
|
$ 12.34 | |||||
| *76655 | 215339900 | Clip, Cantilevr Shlf |
|
$ 5.83 | |||||
| 126A | 215205200 | Rail-auger Bucket, Rh (non-illustrated) |
|
- | |||||
| 129A | 215005101 | Screw-roller, 8-10 X 7/16 (non-illustrated) (Replaces: 215005100) |
|
$ 14.89 | |||||
| 129B | 5303299153 | Bearing-roller (non-illustrated) |
|
$ 5.09 | |||||
| 25A | 5303292403 | Control-humidity (non-illustrated) |
|
- | |||||
| 25B | 5303299053 | Trim-storage Pan Cvr, Upper (non-illustrated) |
|
- | |||||
| 25C | 5303289586 | Trim-storage Pan Cvr, Lower (non-illustrated) |
|
- | |||||
| 26A | 5303289501 | Pan-storage,lower |
|
$ 164.85 | |||||
| 42A | 215002401 | Hanger-deli Tray, Rh (non-illustrated) |
|
$ 85.84 | |||||
| 46A | 5303289499 | Front-storage Pan, Lower |
|
- | |||||
| 47A | 5303289387 | Insert-crisper Cvr, Glass, Clear (non-illustrated) |
|
- | |||||
| 57A | 5303289064 | Ferrule-air |
|
- |
