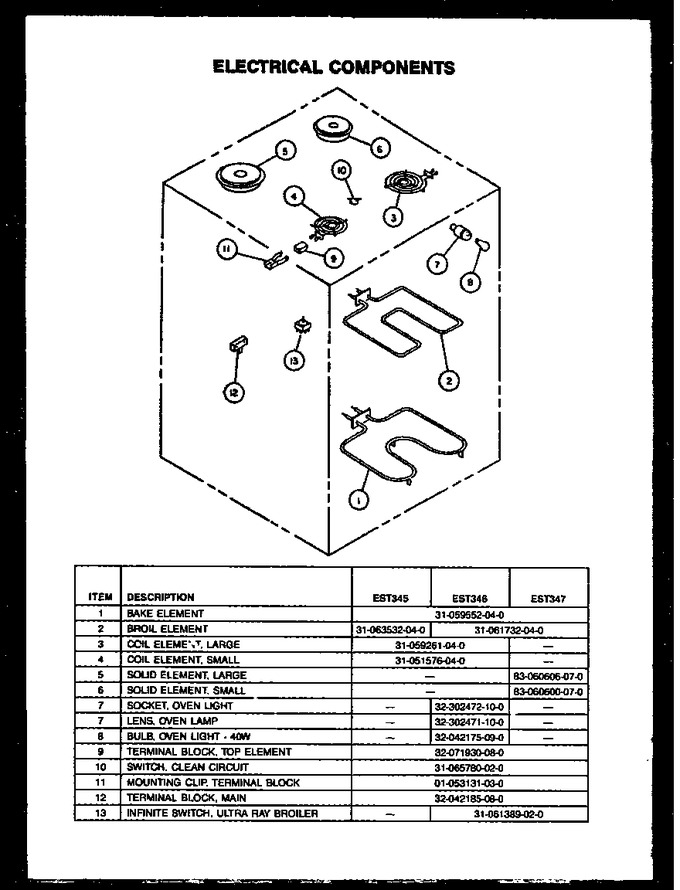

04 - Electrical Components
05 - Oven Door Parts
06 - Page 1
07 - Storage Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP77001094 | Element, Bake (240v-2500w) (Replaces: Y0059552) |
|
Immediately | $ 39.58 | ||||
| 2 | Y0063532 | Broil Element,3000 Watt |
|
$ 66.11 | |||||
| 3 | WPW10259865 | Element, 5 Turn 2600w 8`` (Replaces: Y0059261) |
|
Immediately | $ 105.92 | ||||
| 4 | WPW10259868 | Element, 4 Turn 1500w 6`` (Replaces: Y0051576) |
|
Immediately | $ 112.28 | ||||
| 9 | 330031 | Sub 89336 Term Block Kit (Replaces: Y0071930) |
|
Immediately | $ 14.48 | ||||
| 10 | Y0065780 | Switch, Clean Circuit |
|
$ 11.77 | |||||
| 11 | Y0053131 | Mounting Brkt. Plug Block |
|
- | |||||
| 12 | 0042185 | Term Blk 1m-min |
|
- |
