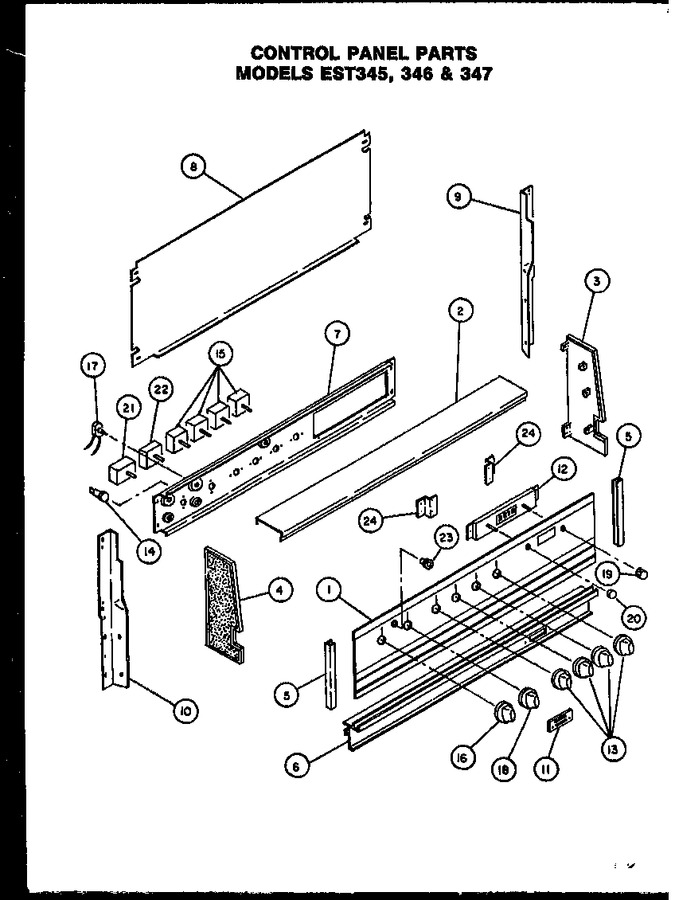

03 - Control Panel Parts


04 - Electrical Components


05 - Oven Door Parts


06 - Page 1


07 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0300466		Backguard Glass		Appelez-nous	-
2	300470B		Top Trim, Backguard		Appelez-nous	-
3	Y0302983		End Cap, Rh		Appelez-nous	-
4	Y0302982		End Cap, Lh		Appelez-nous	-
5	0059768		Channel, Glass (black)		Appelez-nous	-
6	300775L		Trim, Backguard-ego		Appelez-nous	-
6	300774W		Trim, Backguard-ego		Appelez-nous	-
7	Y0301520		Control Panel, Backguard		Appelez-nous	-
8	0058886		Cover, Backguard		Appelez-nous	-
9	Y0058920		Support, Backguard Rt		Appelez-nous	-
10	Y0058919		Support Backguard Lh		Appelez-nous	-
11	300726B		Trim, Vent, Black		Appelez-nous	-
12	0301056		Timer, Cook & Off		Appelez-nous	-
13	0300708		Knob, Top Element		Appelez-nous	-
14	Y0071820		Indicator Light		Appelez-nous	-
15	0071745		Switch, Infinite		Appelez-nous	-
16	0300709		Knob, Oven Control		Appelez-nous	-
17	0300778		Kit, Light Switch		Appelez-nous	-
18	0300710		Knob, Selector		Appelez-nous	-
19	0302045		Set Button, Knob (black)		Appelez-nous	-
20	0300702		Knob, Clock		Appelez-nous	-
21	Y0063416		Thermostat		Appelez-nous	-
22	Y0063008		Switch, Selector		Appelez-nous	-
23	0065051		Bezel, Panel Switch		Appelez-nous	-
24	0301753		Bracket, Clock Mtg.		Appelez-nous	-
NI	Y0065052		Speednut		Appelez-nous	-
NI	Y0041778		Screw 6-32x3/16 Slo Cook Sw		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
