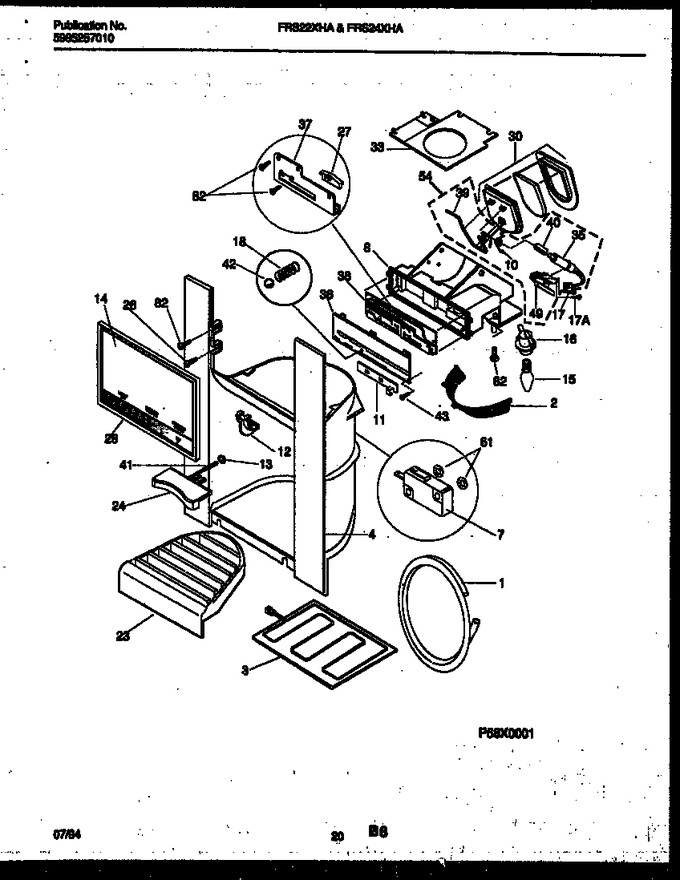

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
215294101 |
 |
Tube-water Inlet,formed,plastic,dispenser |
|
|
|
$ 91.25 |
|
|
| 1 |
5318582501 |
|
Tube-water Inlet, 93``, Plastic, Cut To Size |
|
Appelez-nous
|
- |
|
|
|
| 2 |
215732118 |
|
Deflector-ice Disp, Black |
|
Appelez-nous
|
- |
|
|
|
| 3 |
215484300 |
|
Heater-door Housing |
|
|
|
$ 40.85 |
|
|
| 4 |
5303299527 |
|
Housing-dispenser, Black |
|
Appelez-nous
|
- |
|
|
|
| 7 |
218284800 |
|
Switch-actuator,micro |
|
Appelez-nous
|
- |
|
|
|
| 8 |
215763501 |
|
Module - Dispenser |
|
Appelez-nous
|
- |
|
|
|
| 10 |
218209800 |
|
Spring,dispenser Door |
|
Appelez-nous
|
- |
|
|
|
| 11 |
215897500 |
|
Slide-selector Sw, (pc Board) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
215766503 |
|
Knob-selector, Black |
|
Appelez-nous
|
- |
|
|
|
| 13 |
215748101 |
|
Ring-snap,actuator |
|
|
|
$ 50.09 |
|
|
| 14 |
215993003 |
|
Label-module Cover, Black |
|
Appelez-nous
|
- |
|
|
|
| 15 |
218284900 |
|
Light Bulb / Lamp, 4w, 115v |
|
Appelez-nous
|
- |
|
|
|
| 16 |
240548901 |
 |
Socket-light/lamp (Replaces: 215284900) |
|
|
|
$ 63.70 |
|
|
| 17 |
215794400 |
|
Screw,6 X 1/4 |
|
Appelez-nous
|
- |
|
|
|
| 18 |
215760200 |
|
Spring |
|
Appelez-nous
|
- |
|
|
|
| 23 |
5303299660 |
 |
Drip Tray, Black |
|
|
|
$ 70.04 |
|
|
| 24 |
215766303 |
|
Actuator, Black |
|
Appelez-nous
|
- |
|
|
|
| 26 |
215503203 |
 |
Screw,hilo Phil Pn Hd,10 X 1/2 (Replaces: 215503200) |
|
|
Immediately |
$ 7.09 |
|
|
| 27 |
215254700 |
|
Cam-slide |
|
Appelez-nous
|
- |
|
|
|
| 28 |
5303299661 |
|
Cover-module, Black |
|
Appelez-nous
|
- |
|
|
|
| 30 |
215753600 |
|
Door Assy-ice,w/gasket,insul |
|
Appelez-nous
|
- |
|
|
|
| 33 |
215851100 |
|
Heater-disp Throat |
|
Appelez-nous
|
- |
|
|
|
| 35 |
218284700 |
|
Heat Motor,115v |
|
Appelez-nous
|
- |
|
|
|
| 36 |
215254400 |
|
Cover-selector Sw |
|
Appelez-nous
|
- |
|
|
|
| 37 |
215763400 |
|
Guide-cam |
|
Appelez-nous
|
- |
|
|
|
| 38 |
215894603 |
|
Pc Board |
|
Appelez-nous
|
- |
|
|
|
| 17A |
215840700 |
|
Screw,truss Head,6-20 X 3/8 |
|
Appelez-nous
|
- |
|
|
|
| 38A |
215630800 |
|
Washer, Ext Tooth Lock, Light Switch, (non-illustrated) |
|
Appelez-nous
|
- |
|
|
|
| 38B |
215631000 |
|
Nut, Hex, Light Switch (non-illustrated) |
|
Appelez-nous
|
- |
|
|
|
| 38C |
215763900 |
|
Cap-light Switch (non-illustrated) |
|
Appelez-nous
|
- |
|
|
|
| 7A |
215944300 |
|
Shield-micro Switch (non-illustrated) |
|
|
|
$ 58.85 |
|
|
View Diagram in Separate Window
Print Part List
