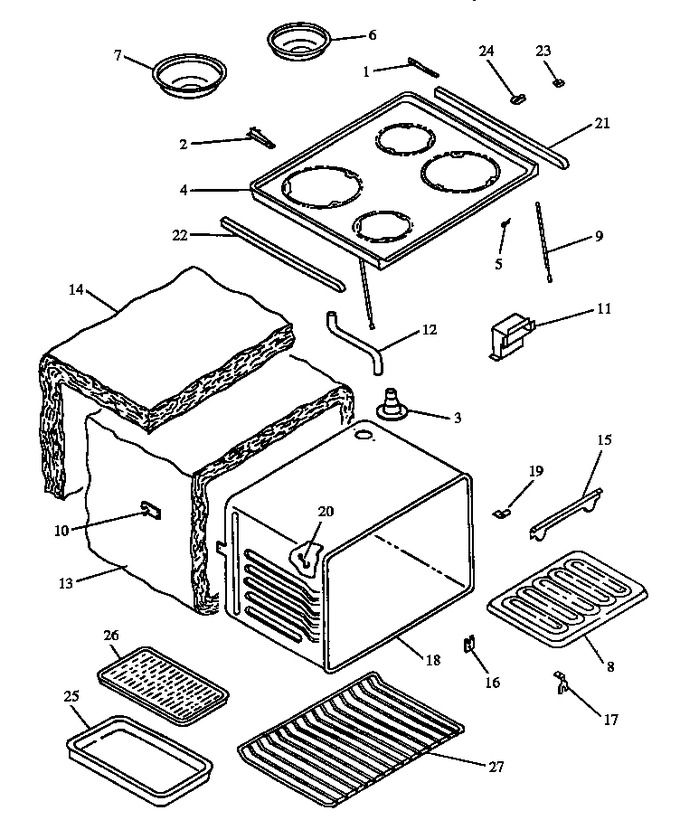

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0091517 | Bracket Assembly |
|
- | |||||
| 2 | 0091518 | Bracket Assembly |
|
- | |||||
| 3 | Y0058526 | Smoke Eliminator |
|
- | |||||
| 4 | Y059465W | Main Top, White |
|
- | |||||
| 5 | 0071668 | Pin, Support Rod |
|
- | |||||
| 6 | 304980B | Burner Pan 6`` Black |
|
- | |||||
| 6 | W10290353RW | Burner, Bowl 6`` (black) (Replaces: 308648B) |
|
Immediately | $ 19.27 | ||||
| 6 | Y0304978 | Burner Bowl Ring 6`` Chrome |
|
- | |||||
| 7 | 304981B | Burner Pan 8`` Black |
|
- | |||||
| 7 | Y0304979 | Bowl, Burner 8`` (chrome) |
|
- | |||||
| 7 | WPW10290350 | Bowl, Burner 8`` (black) (Replaces: 308649B) |
|
Immediately | $ 15.25 | ||||
| 8 | Y0061781 | Reflector, Broil Element |
|
- | |||||
| 9 | Y0304115 | Support, Maintop |
|
- | |||||
| 10 | Y0058852 | Bracket, Oven Cavity |
|
- | |||||
| 11 | 301288E | Flue Box |
|
- | |||||
| 12 | 0300024 | Tube, Vent |
|
- | |||||
| 13 | 0300973 | Insulation, Wrapper |
|
- | |||||
| 14 | Y0300974 | Insulation, Rear |
|
- | |||||
| 15 | Y0061557 | Bracket, Reflector Mounting |
|
- | |||||
| 16 | Y0063351 | Capillary Hole Cover |
|
- | |||||
| 17 | 0061556 | Bracket, Mounting |
|
- | |||||
| 18 | 58788CG | Oven Shell (el. W/lt) |
|
- | |||||
| 19 | Y0307380 | Cover, Chip |
|
- | |||||
| 20 | Y0091546 | Support |
|
- | |||||
| 21 | Y0302979 | Trim, Main Top, Rh, Electric |
|
- | |||||
| 22 | 0302978 | Trim, Main Top, Lh, Electric |
|
- | |||||
| 23 | Y0096604 | Nut, Type ``u`` |
|
- | |||||
| 24 | 0071203 | Wire Clamp |
|
- | |||||
| 25 | 4396923 | Pan, Broiler (Replaces: 11161CG) |
|
Immediately | $ 52.04 | ||||
| 26 | 4396923 | Grid, Broiler (cg) (Replaces: 304451E) |
|
Immediately | $ 52.04 | ||||
| 27 | WP314763J | Rack,oven (Replaces: Y067810K) |
|
$ 70.11 | |||||
| NI | Y0076357 | Rivet, Pop |
|
- |
