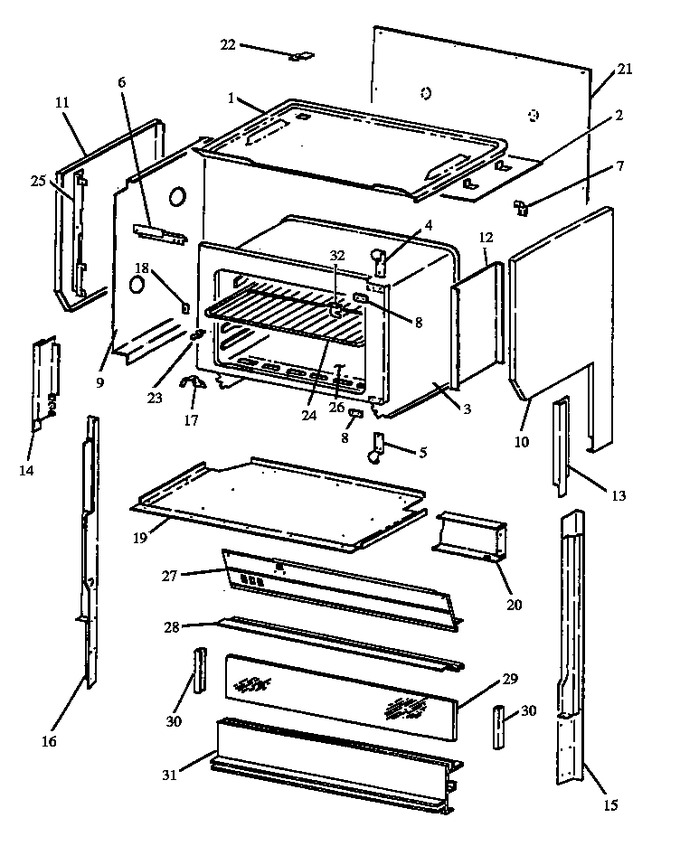

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0304565		Jacket Top		Appelez-nous	-
2	Y0078701		Insulation Retainer, Top		Appelez-nous	-
4	Y0094357		Hinge, Top		Appelez-nous	-
5	Y0094356		Hinge, Bottom		Appelez-nous	-
6	0304575		Support Filler		Appelez-nous	-
7	0079740		Spring Clip		Appelez-nous	-
8	0093625		Cover Plate Front Frame		Appelez-nous	-
9	Y0304556		Insulation Retainer Lh		Appelez-nous	-
10	303645W		End Panel Rh		Appelez-nous	-
11	303646W		End Panel Lh		Appelez-nous	-
12	Y0062256		Retainer, Insulation		Appelez-nous	-
13	Y0303693		Trim Support Lower Rh		Appelez-nous	-
14	Y0303694		Trim Support Lower Lh		Appelez-nous	-
15	Y0300414		Support Right		Appelez-nous	-
16	0300413		Support Left		Appelez-nous	-
17	0071092		Door Guide		Appelez-nous	-
18	0075826		Plate, Door Strike		Appelez-nous	-
19	71317CG		Bottom, Jacket		Appelez-nous	-
20	0304537		Panel Surface Light		Appelez-nous	-
21	Y0304553		Cover Wire Rear		Appelez-nous	-
22	Y0073060		Receptacle Cover		Appelez-nous	-
23	Y0078034		Strike, Door, Upper Oven		Appelez-nous	-
24	304530J		Rack, Oven 19 7/8x 1117/32``		Appelez-nous	-
25	0304550		Support Brkt Control Panel		Appelez-nous	-
26	78002CG		Oven Bottom		Appelez-nous	-
27	0303690		Decorative Panel		Appelez-nous	-
28	0062230		Trim, Rear		Appelez-nous	-
29	0303680		Glass Splashplate		Appelez-nous	-
30	Y0303647		Trim Glass Channel		Appelez-nous	-
31	303681W		Trim, Lwr Plte W/light		Appelez-nous	-
32	0073057		Brkt, Broil Elem Sup		Appelez-nous	-
NI	0098190		Screw, Oven Door		Appelez-nous	-
NI	Y0096342		Pop Rivet 1/8`` Diameter		Appelez-nous	-
NI	0097959		Washer Finishing		Appelez-nous	-
