SELECT A DIAGRAM

01 - Electric Range


02 - Backguard


03 - Body


04 - Top/drawer

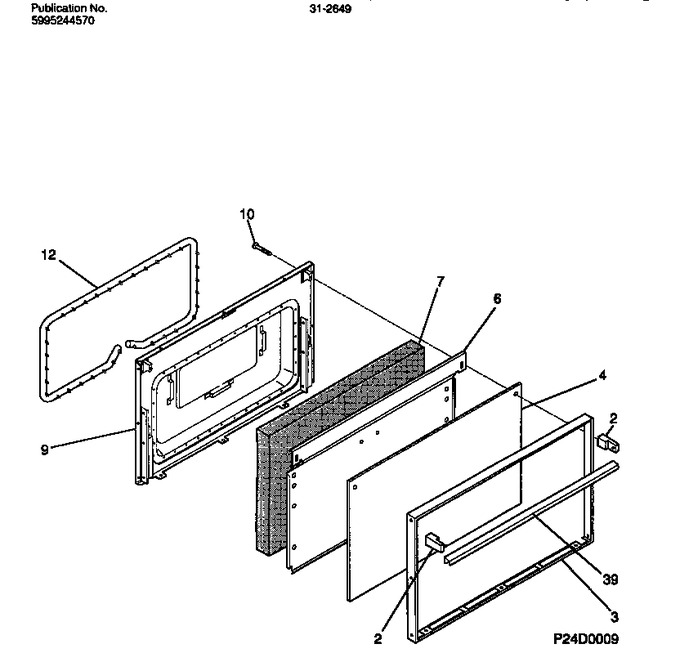

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016755		End Cap, Black, (2)		Appelez-nous	-
3	5303209518		Trim-oven Door (black)		Appelez-nous	-
4	316019705		Glass-oven Door, Solid Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	5303209318		Liner-oven Door		Appelez-nous	-
10	5303281378		Screw-handle Mtg, Wafer Head, 10-24(f) X 3				$ 13.60
12	5303131601		Seal-oven Door				$ 374.63
39	5303273127		Handle-door, Black, Oven		Appelez-nous	-
*73444	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*73445	5303299158		Screw, 8 18 X 1/2, Sdr, 8-18 X 1/2, Blk		Appelez-nous	-
*73448	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
