SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - Compressor


08 - Ice Dispenser


09 - Ice Container


10 - Ice Maker

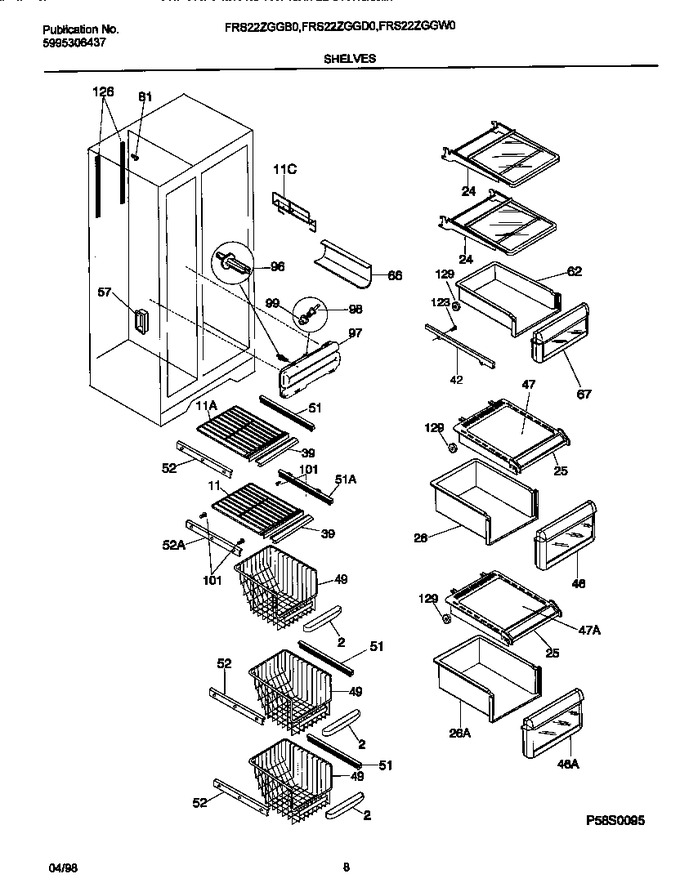

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	218383601		Handle-frzr Basket		Appelez-nous	-
11	218298001		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
11	218815501		Shelf-pizza,24b				$ 70.31
11	218298002		Shelf-freezer, Sliding, Wire		Appelez-nous	-
24	215406135		Shelf-``spill-safe``,fixed		Appelez-nous	-
25	218147701		Cover-storage Pan				$ 123.56
26	5303289500		Pan-storage,upper				$ 174.74
26	5303289501		Pan-storage,lower				$ 164.85
39	215217543		Trim-frzr Shelf		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
46	5304411659		Front-storage Pan, Lower   (Replaces: 218278202)				$ 206.96
46	5304411659		Front-storage Pan, Upper   (Replaces: 218278201)				$ 206.96
47	5303289387		Insert-pan Cover,glass,clear		Appelez-nous	-
47	215723574		Insert-pan Cover, Glass, Clear, W/teal Graphics		Appelez-nous	-
49	218384702		Basket-sliding, (3)		Appelez-nous	-
51	5303288960		Hanger-basket, Rh				$ 70.77
51	5303301454		Hanger-basket, Rh		Appelez-nous	-
52	215162503		Hanger-basket, Lh, With Spring				$ 62.32
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
62	218285701		Tray-deli		Appelez-nous	-
66	241657701		Rack-wine   (Replaces: 5304402116)				$ 57.41
67	218278501		Front-deli Tray		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank Assy, Includes Tank, Grommets   (Replaces: 218759501)				$ 121.63
98	5308015614		Connector - Tube				$ 34.57
99	5300186057		Grommet-tank				$ 28.98
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 3/4 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
*39100	5303289586		Trim-storage Pan Cvr,lower		Appelez-nous	-
*39101	5303307878		Trim-storage Pan Cvr, Upper, W/humidity Hole		Appelez-nous	-
*39102	5303307881		Control-humidity		Appelez-nous	-
*39103	215002401		Hanger-pan/tray, Rh				$ 85.84
*39104	215328300		Clip-shelf				$ 14.02
126A	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126B	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
129A	5303299152		Roller-hanger				$ 12.34
129B	5303299153		Bearing-roller				$ 5.09

    View Diagram in Separate Window       Print Part List
