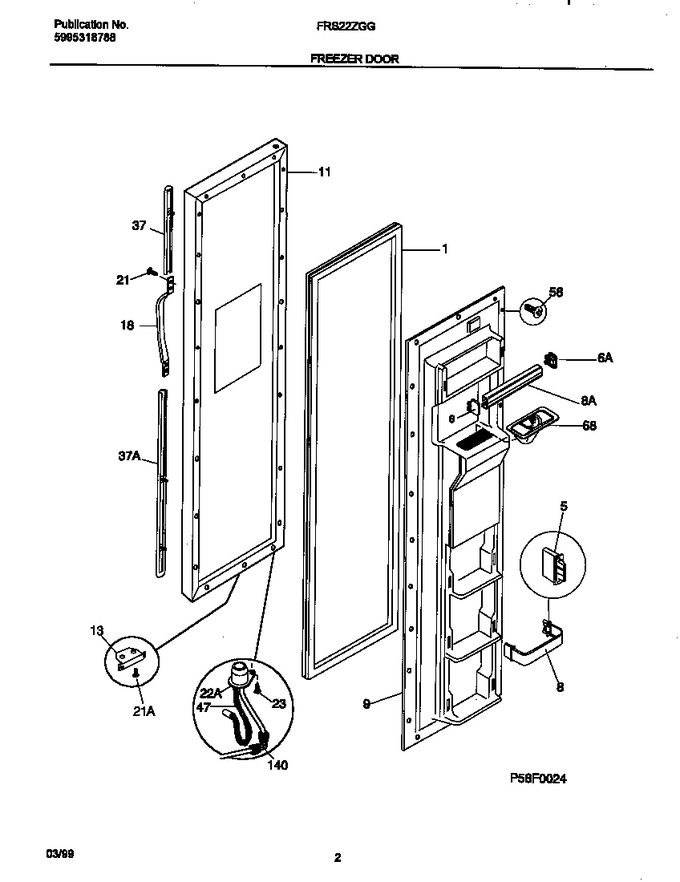

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734323		Gasket-frzr Door, Black, Magnetic				$ 215.25
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
6	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
8	218807025		Rack-door,w/end Caps		Appelez-nous	-
8	215474038		Rack-door		Appelez-nous	-
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918093		Panel-ext Frzr Door Black,black ,w/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	218025205		Handle-door, Metallic Gray, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca,8 32 X 1/2 10		Appelez-nous	-
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303001020		Screw, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
37	215867063		Trim-handle,metallic Gray ,lower ,w/dec Gold Band,and Sn		Appelez-nous	-
37	215867066		Trim-handle,metallic Gray ,upper ,w/dec Gold Band,and Sn		Appelez-nous	-
47	218895301		Harness-wiring,frzr Door				$ 137.51
58	218781101		Screw, Pan Head, 8-18 X 5/8   (Replaces: 218781100)				$ 15.60
68	218020600		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
*47000	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676003		Band-decorative, Gold				$ 47.11
