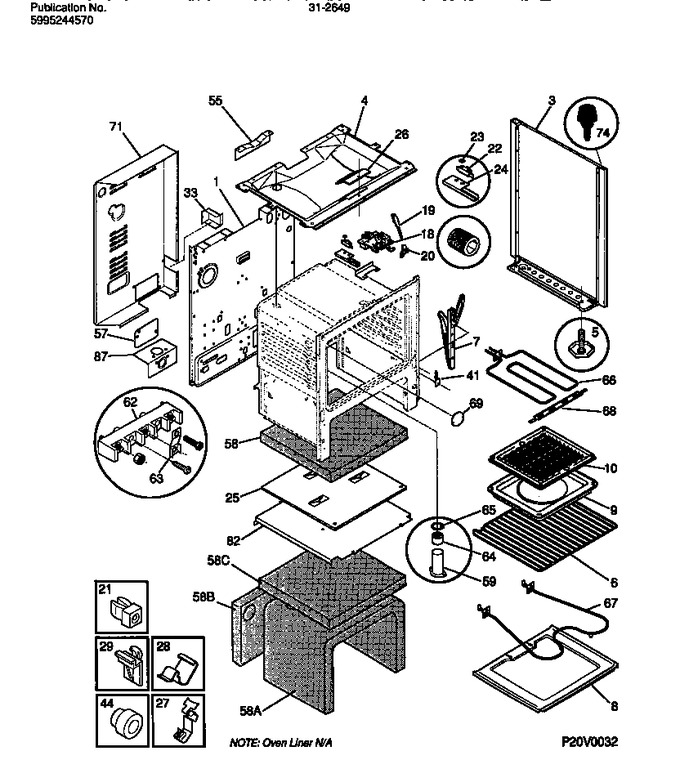

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203082		Back-main		Appelez-nous	-
3	5303269518		Panel-bodyside, White, Rh		Appelez-nous	-
4	5303271658		Burner Box		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
6	5303281625		Rack Oven		Appelez-nous	-
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
18	5303015361		Latch-door, Bimetal		Appelez-nous	-
19	5303131357		Handle-latch				$ 37.33
20	3203218		Knob-latch		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
22	5303269499		Switch-latch				$ 20.53
23	08067776		Fastener-push-on		Appelez-nous	-
24	3051413		Shield-latch		Appelez-nous	-
25	3200848		Shield,heat ,lower		Appelez-nous	-
26	08067757		Cover Plate		Appelez-nous	-
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3051367		Clip-wire		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
33	3203582		Shield-rear Wall		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
55	3051368		Shield-flue Cover		Appelez-nous	-
57	3203405		Cover-access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	3051344		Tube-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block (wiring Harnesses Are Not Availble For Th   (Replaces: 5306563359)			Immediately	$ 26.69
63	5303212739		Plate-ground Strap		Appelez-nous	-
64	08067810		Filter-oven Vent, Catalyst		Appelez-nous	-
65	08010606		Retainer-filter		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075103		Element-bake   (Replaces: 3203534)			Immediately	$ 42.36
68	3051373		Support-element		Appelez-nous	-
69	3051218		Plate,oven Light		Appelez-nous	-
71	3203549		Shield-rear Wall, Lower		Appelez-nous	-
82	3200825		Shield, Oven Bottom		Appelez-nous	-
87	5303206618		Bracket-cable Mtg		Appelez-nous	-
*73446	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46
18A	3131593		Shield-latch, Top (non-illustrated)		Appelez-nous	-
20A	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
22A	08067978		Stud-spacer (non-illustrated)		Appelez-nous	-
3A	5303269519		Panel-bodyside, White, Lh (non-illustrated)		Appelez-nous	-
3C	3200834		Shield-heat, Body Side (non-illustrated)		Appelez-nous	-
58A	3200833		Insulation, Oven Wrapper		Appelez-nous	-
58B	316054200		Insulation, Oven Back		Appelez-nous	-
58C	3131304		Insulation, Oven Top		Appelez-nous	-
5A	3934056		Anti-tip Kit (non-illustrated)		Appelez-nous	-
5B	5303288460		Nut, T-type, Leveling Screw (non-illustrated)				$ 27.14
62A	5303051099		Nut, Hex, 10-32 (non-illustrated)		Appelez-nous	-
87A	3200846		Fastener-edge Mtg (non-illustrated)		Appelez-nous	-
87B	3203550		Plug-button (non-illustrated)			Immediately	$ 15.22
87C	08067961		Fastener-power Cord		Appelez-nous	-
