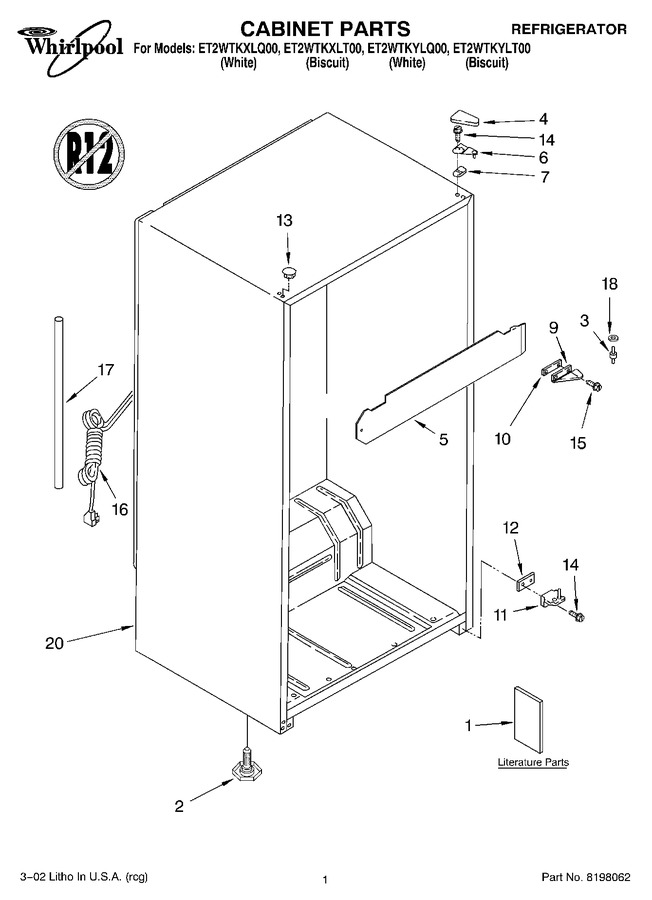

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4356798 | Literature Parts (owner`s Manual) |
|
- | |||||
| 1 | LIT4390844 | Literature Parts (energy Label) |
|
- | |||||
| 2 | W11117769 | Leveler (Replaces: 4390567) |
|
Immediately | $ 16.61 | ||||
| 3 | 4390544 | Pin, Center Hinge |
|
$ 11.34 | |||||
| 4 | 4390826 | Hinge Cover (biscuit) |
|
- | |||||
| 4 | 4357279 | Hinge Cover (white) |
|
$ 46.56 | |||||
| 5 | 4390723 | Center Rail |
|
- | |||||
| 6 | 4390673 | Hinge, Top (white) |
|
- | |||||
| 6 | 4390825 | Hinge, Top (biscuit) |
|
- | |||||
| 7 | 4390489 | Shim, Hinge Top |
|
$ 6.26 | |||||
| 9 | 4390828 | Center Hinge (biscuit) |
|
- | |||||
| 9 | 4390732 | Center Hinge (white) |
|
- | |||||
| 10 | 4390646 | Shim, Center Hinge |
|
- | |||||
| 11 | 4390829 | Bottom Hinge (biscuit) |
|
- | |||||
| 11 | 4390733 | Bottom Hinge (white) |
|
$ 14.55 | |||||
| 12 | 4390497 | Shim, Bottom Hinge |
|
- | |||||
| 13 | 4390830 | Hole Plug (biscuit) |
|
- | |||||
| 13 | 4390836 | Hole Plug (white) |
|
- | |||||
| 14 | WP999367 | Screw (Replaces: 4390496) |
|
$ 7.07 | |||||
| 15 | WP999367 | Screw (Replaces: 4390492) |
|
$ 7.07 | |||||
| 16 | 4390591 | Cord, Service |
|
- | |||||
| 17 | 4390648 | Tube Insulation, Heat Exchanger |
|
- | |||||
| 18 | 4390623 | Washer, Door Adjust |
|
- | |||||
| 20 | N/A | Cabinet (not A Serviceable Part) |
|
- |
