01 - Cover
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet

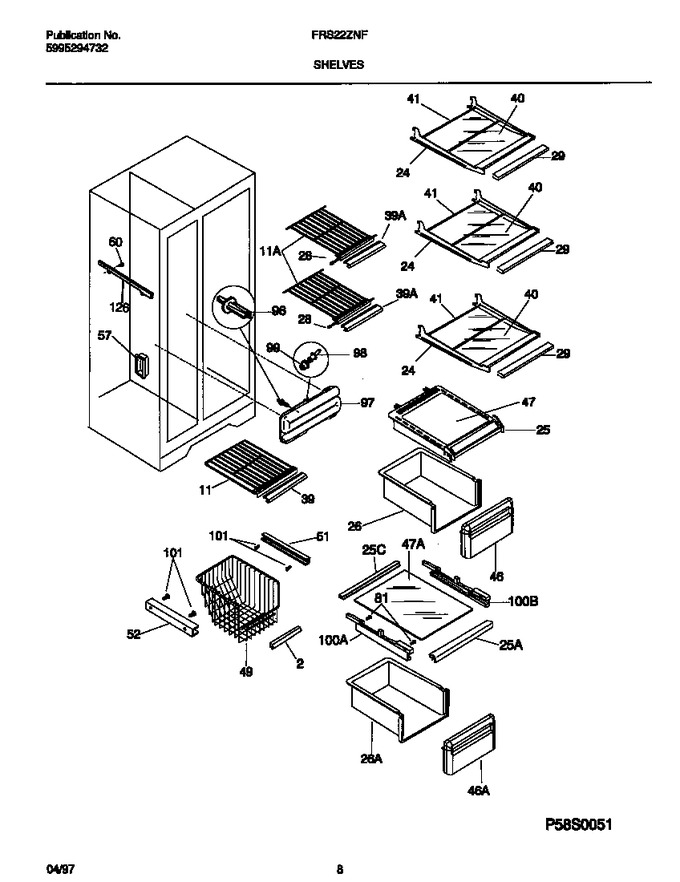

05 - Shelves
06 - Controls
07 - System
08 - Ice & Water Dispenser
09 - Container
10 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303298147 | Trim-basket |
|
$ 60.38 | |||||
| 11 | 218298001 | Shelf, Freezer, Sliding, Wire |
|
- | |||||
| 24 | 215919137 | Frame, Refr Shelf, Cantilever |
|
- | |||||
| 25 | 218147701 | Cover-storage Pan |
|
$ 123.56 | |||||
| 26 | 5303289500 | Pan-storage,upper |
|
$ 174.74 | |||||
| 28 | 08013638 | End Cap-shelf, Protector |
|
- | |||||
| 29 | 215919415 | Trim-refr Shelf, Front, (3) |
|
$ 57.59 | |||||
| 39 | 215217543 | Trim-frzr Shelf |
|
- | |||||
| 40 | 215723555 | Glass, Refr Shelf, Clear |
|
$ 91.19 | |||||
| 41 | 215919815 | Trim-refr Shelf, Rear |
|
- | |||||
| 46 | 5303309824 | Front-storage Pan, Upper |
|
- | |||||
| 47 | 5303289387 | Insert-pan Cover,glass,clear |
|
- | |||||
| 49 | 5303289521 | Basket-sliding |
|
$ 239.40 | |||||
| 51 | 5303288960 | Hanger-basket, Rh |
|
$ 70.77 | |||||
| 52 | 215162501 | Hanger-basket, Lh, With Spring |
|
$ 96.08 | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 96 | 215192600 | Support - Water Tank |
|
$ 10.71 | |||||
| 97 | 5303918258 | Water Tank Assy, Includes Tank, Grommets, Connectors (Replaces: 218733900) |
|
$ 121.63 | |||||
| 98 | 5308015614 | Connector - Tube |
|
$ 34.57 | |||||
| 99 | 5300186057 | Grommet-tank |
|
$ 28.98 | |||||
| 101 | 5304455650 | Screw, Hex Washer Head, 8-18ab X 3/4, Gusset/hanger (Replaces: 215005000) |
|
$ 14.18 | |||||
| 126 | 218232700 | Rail-auger Bucket, Rh (not Illustrated) |
|
$ 44.05 | |||||
| 126 | 215205400 | Rail-auger Bucket,lh |
|
$ 64.00 | |||||
| *11 | 218159700 | Spacer-shelf (not Illustrated) |
|
- | |||||
| *25 | 5303307878 | Trim-storage Pan Cvr, Upper, W/humidity Hole (not Illustrated) |
|
- | |||||
| *25 | 5303308340 | Control-humidity (not Illustrated) |
|
- | |||||
| *29807 | 215328300 | Clip-shelf |
|
$ 14.02 | |||||
| 100A | 218015501 | Support-pan Cover, Lh |
|
$ 37.26 | |||||
| 100B | 218015601 | Support-pan Cover, Rh |
|
$ 55.18 | |||||
| 11A | 5303289504 | Shelf-freezer, Fixed Wire |
|
- | |||||
| 25A | 218015302 | Trim-storage Pan Cvr, Snap-on, Front |
|
- | |||||
| 25C | 218015402 | Trim-storage Pan Cvr, Snap-on, Rear |
|
- | |||||
| 26A | 5303289501 | Pan-storage,lower |
|
$ 164.85 | |||||
| 39A | 215217558 | Trim-frzr Shelf |
|
- | |||||
| 46A | 5303309823 | Front-storage Pan, Lower |
|
- | |||||
| 47A | 215723552 | Insert-pan Cover, Glass, Clear |
|
$ 77.10 |
