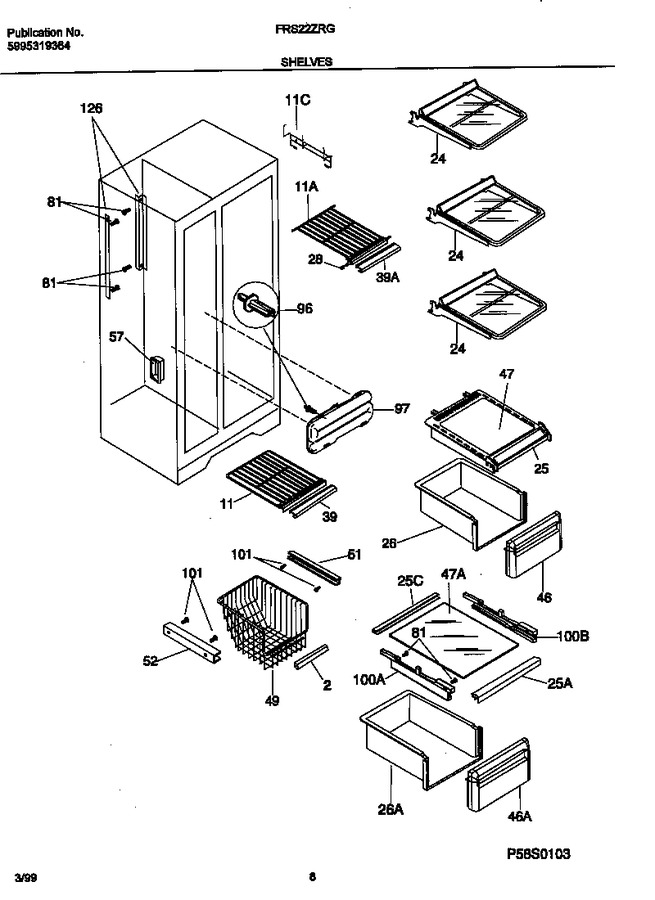

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298147		Trim-basket				$ 60.38
11	5303289504		Shelf-freezer, Fixed Wire		Appelez-nous	-
11	218815501		Shelf-pizza,24b				$ 70.31
11	218298001		Shelf, Freezer, Sliding, Wire		Appelez-nous	-
24	215406128		Shelf-``spill-safe``, Fixed, (3)		Appelez-nous	-
25	218147701		Cover-storage Pan				$ 123.56
25	218015302		Trim-storage Pan Cvr, Snap-on, Front		Appelez-nous	-
25	218015402		Trim-storage Pan Cvr, Snap-on, Rear		Appelez-nous	-
26	5303289501		Pan-storage,lower				$ 164.85
26	5303289500		Pan-storage,upper				$ 174.74
28	08013638		End Cap-shelf, Protector, Lower Fzr Shelf		Appelez-nous	-
39	215217543		Trim-frzr Shelf		Appelez-nous	-
39	215217558		Trim-frzr Shelf		Appelez-nous	-
46	5303308604		Front-storage Pan, Upper		Appelez-nous	-
46	5303308605		Front-storage Pan, Lower		Appelez-nous	-
47	215723552		Insert-pan Cover, Glass, Clear				$ 77.10
47	218390584		Insert-pan Cover, Glass, White Graphics		Appelez-nous	-
49	5303289521		Basket-sliding				$ 239.40
51	5303288960		Hanger-basket, Rh				$ 70.77
52	215162501		Hanger-basket, Lh, With Spring				$ 96.08
57	5303271653		Ferrule-inner				$ 20.27
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
96	215192600		Support - Water Tank				$ 10.71
97	5303918258		Water Tank   (Replaces: 218871301)				$ 121.63
101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
*52216	218159700		Spacer-shelf		Appelez-nous	-
*52217	5303307878		Trim-storage Pan Cvr, Upper, W/humidity Hole		Appelez-nous	-
*52218	5303308340		Control-humidity		Appelez-nous	-
*52219	215328300		Clip-shelf				$ 14.02
*52220	5303001038		Washer, .28 X .62 X .19, Nylon				$ 13.34
100A	218015501		Support-pan Cover, Lh				$ 37.26
100B	218015601		Support-pan Cover, Rh				$ 55.18
126A	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
126B	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
