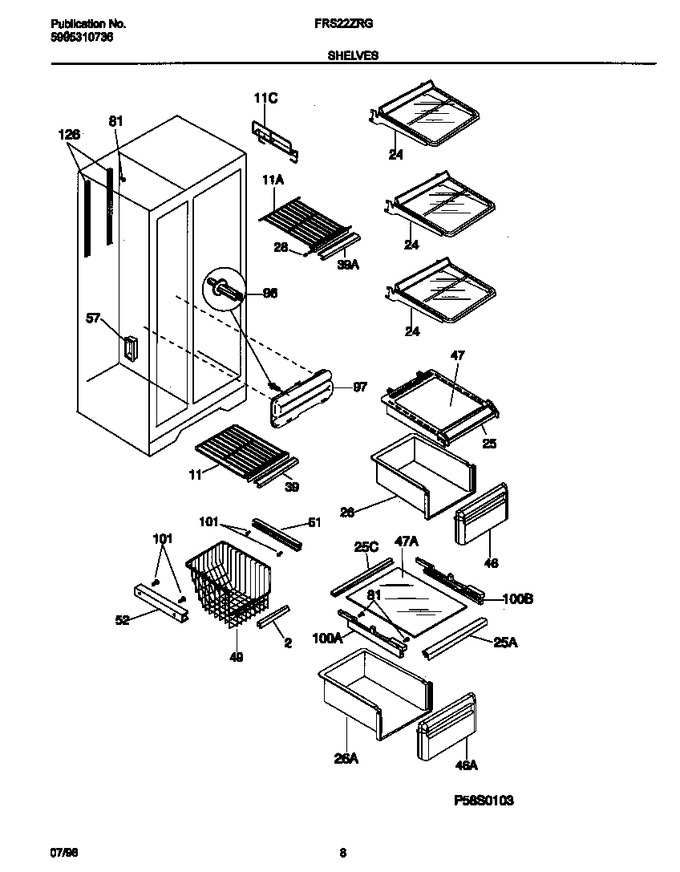

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303298147 | Trim-basket |
|
$ 60.38 | |||||
| 11 | 5303289504 | Shelf-freezer, Fixed Wire |
|
- | |||||
| 11 | 218298001 | Shelf, Freezer, Sliding, Wire |
|
- | |||||
| 11 | 218815501 | Shelf-pizza,24b |
|
$ 70.31 | |||||
| 24 | 215406128 | Shelf-``spill-safe``, Fixed, (3) |
|
- | |||||
| 25 | 218015302 | Trim-storage Pan Cvr, Snap-on, Front |
|
- | |||||
| 25 | 218015402 | Trim-storage Pan Cvr, Snap-on, Rear |
|
- | |||||
| 25 | 218147701 | Cover-storage Pan |
|
$ 123.56 | |||||
| 26 | 5303289500 | Pan-storage,upper |
|
$ 174.74 | |||||
| 26 | 5303289501 | Pan-storage,lower |
|
$ 164.85 | |||||
| 28 | 08013638 | End Cap-shelf, Protector, Lower Fzr Shelf |
|
- | |||||
| 39 | 215217543 | Trim-frzr Shelf |
|
- | |||||
| 39 | 215217558 | Trim-frzr Shelf |
|
- | |||||
| 46 | 5303308605 | Front-storage Pan, Lower |
|
- | |||||
| 46 | 5303308604 | Front-storage Pan, Upper |
|
- | |||||
| 47 | 215723552 | Insert-pan Cover, Glass, Clear |
|
$ 77.10 | |||||
| 47 | 218390584 | Insert-pan Cover, Glass, White Graphics |
|
- | |||||
| 49 | 5303289521 | Basket-sliding |
|
$ 239.40 | |||||
| 51 | 5303288960 | Hanger-basket, Rh |
|
$ 70.77 | |||||
| 52 | 215162501 | Hanger-basket, Lh, With Spring |
|
$ 96.08 | |||||
| 57 | 5303271653 | Ferrule-inner |
|
$ 20.27 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 96 | 215192600 | Support - Water Tank |
|
$ 10.71 | |||||
| 97 | 5303918258 | Water Tank (Replaces: 218871301) |
|
$ 121.63 | |||||
| 101 | 5304455650 | Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger (Replaces: 215005000) |
|
$ 14.18 | |||||
| *48054 | 218159700 | Spacer-shelf |
|
- | |||||
| *48055 | 5303307878 | Trim-storage Pan Cvr, Upper, W/humidity Hole |
|
- | |||||
| *48056 | 5303308340 | Control-humidity |
|
- | |||||
| *48057 | 215328300 | Clip-shelf |
|
$ 14.02 | |||||
| *48058 | 5303001038 | Washer, .28 X .62 X .19, Nylon |
|
$ 13.34 | |||||
| 100A | 218015501 | Support-pan Cover, Lh |
|
$ 37.26 | |||||
| 100B | 218015601 | Support-pan Cover, Rh |
|
$ 55.18 | |||||
| 126A | 218867401 | Channel,auger Mtg ,lh |
|
- | |||||
| 126B | 218867402 | Channel`auger Mtg ,rh |
|
- |
