SELECT A DIAGRAM

01 - Cover


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - Ice Dispenser


08 - System


09 - Ice Container


10 - Ice Maker

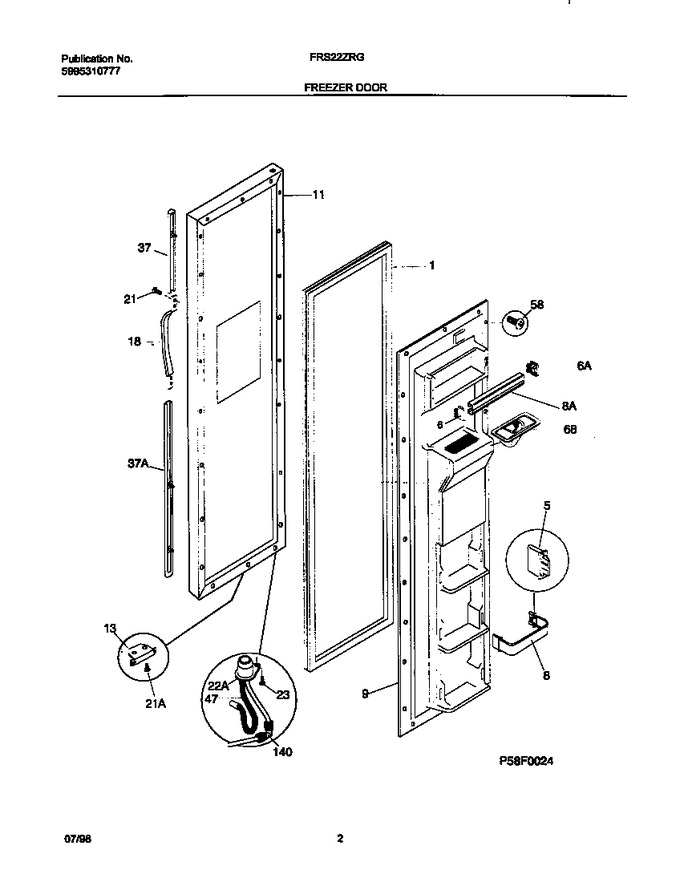

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215734313		Gasket-frzr Door, White, Magnetic				$ 244.78
5	5303288950		Support-door Rack, Rh/lh				$ 51.19
6	5303323484		Support-door Rack, White, Lh		Appelez-nous	-
6	5303323485		Support-door Rack, White, Rh		Appelez-nous	-
8	218807012		Rack-door, W/end Caps		Appelez-nous	-
8	215474043		Rack-door		Appelez-nous	-
9	218510601		Panel-inner Door, Frzr		Appelez-nous	-
11	5303917662		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	5303015015		Screw,hx Wshr Hd Sems ,8-15a X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	215615300		Bushing-door,bronze		Appelez-nous	-
23	5303015020		Screw,cr Flat Head ,8-32d X 1/2		Appelez-nous	-
37	215867053		Trim-handle, White, Lower, W/chrome Band				$ 70.72
37	215867055		Trim-handle, White, Upper, W/chrome Band				$ 51.14
47	218849901		Harness-wiring,frzr Door		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
68	218020600		Chute-ice		Appelez-nous	-
140	218518700		Elbow-water Tube				$ 61.22
*00760	215598900		Washer-flat, .691 X 1 X .05, Zinc, I&w Hinge Brkt		Appelez-nous	-
*00761	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676015		Band-decorative,chrome		Appelez-nous	-
