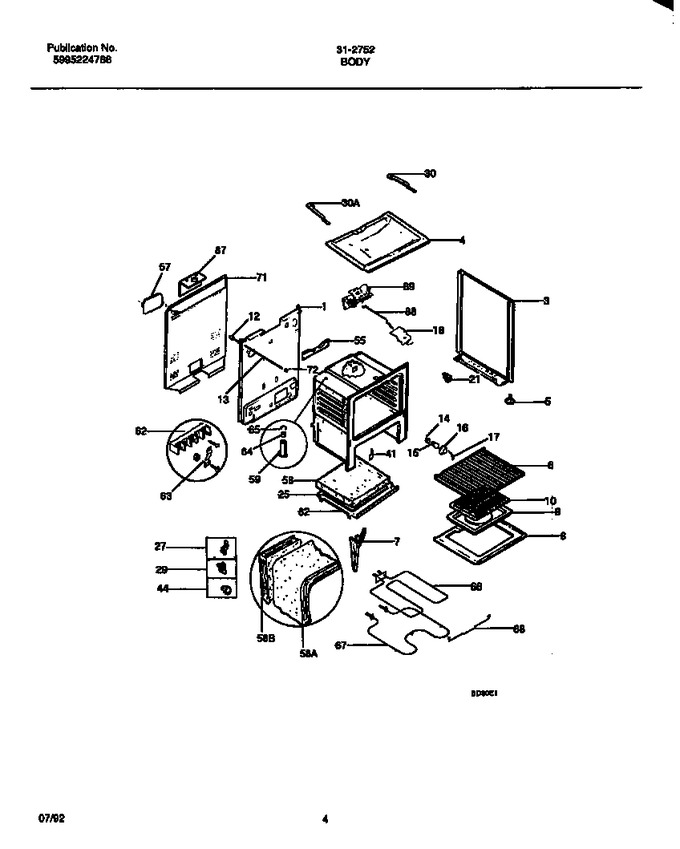

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body Parts
04 - Body Parts
05 - Cooktop And Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316029401 | Back-main |
|
- | |||||
| 3 | 5303269518 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 5303271756 | Burner Box |
|
- | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007001 | Hinge-oven Door |
|
$ 234.55 | |||||
| 8 | 3203540 | Bottom-oven, Electric |
|
- | |||||
| 9 | 5303013568 | Pan-broiler |
|
- | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 12 | 316027701 | Switch-door, Light/lamp |
|
- | |||||
| 13 | 316026800 | Rod-light Switch |
|
$ 36.86 | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp, Oven (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204585 | Retainer-glass |
|
- | |||||
| 18 | 316036300 | Latch-door |
|
- | |||||
| 21 | 3014099 | Spacer,bodyside |
|
$ 3.62 | |||||
| 25 | 3200848 | Shield,heat ,lower |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 30 | 5303263574 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 55 | 3051368 | Shield-flue Cover |
|
- | |||||
| 57 | 3203405 | Cover-access |
|
- | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 30A | 5303283575 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 3A | 3200834 | Shield-heat, Body Side (non-illustrated) |
|
- | |||||
| 3B | 3200846 | Fastener-edge Mtg (non-illustrated) |
|
- | |||||
| 3C | 5303269519 | Panel-bodyside, White, Lh (non-illustrated) |
|
- | |||||
| 58A | 3131304 | Insulation-oven-top (non-illustrated) |
|
- | |||||
| 58A | 316047700 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 3204582 | Insulation, Oven Back |
|
- | |||||
| 5A | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 5B | 5303288460 | Nut-tee, Leveling Screw (non-illustrated) |
|
$ 27.14 |
