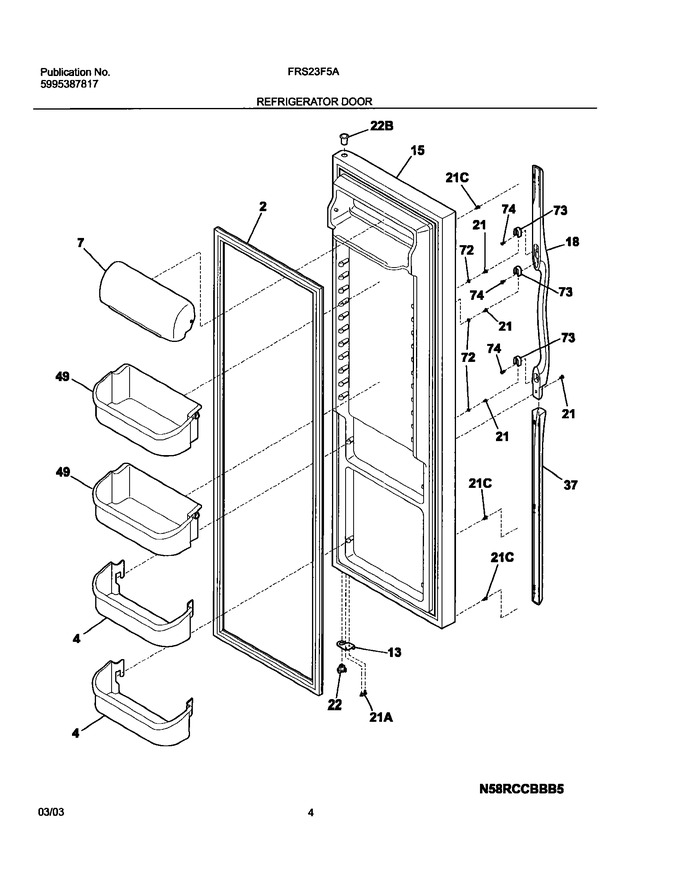

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240363701 | Bin-door,2-liter |
|
Immediately | $ 59.42 | ||||
| 7 | 240338313 | Door,dairy ,clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 13 | 5303918455 | Door Stop,bisque,ref (Replaces: 240537103) |
|
$ 142.04 | |||||
| 15 | 240451917 | Door-refr,bisque ,complete Assy |
|
- | |||||
| 18 | 240359104 | Handle-door,bisque |
|
- | |||||
| 21 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 22 | 240328201 | Bearing-hinge,closer |
|
Immediately | $ 17.72 | ||||
| 37 | 240359204 | Trim-handle,30.13`` ,bisque ,lower |
|
$ 33.44 | |||||
| 49 | 240324501 | Bin-door,gallon |
|
Immediately | $ 69.06 | ||||
| 72 | 240421701 | Button-handle Mtg,dovetail |
|
$ 14.81 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 21A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 21C | 240521302 | Screw,no.8-18 X 3/4 |
|
$ 8.19 | |||||
| 22B | 240328401 | Bearing-hinge,upper |
|
$ 12.97 | |||||
| F2 | 241786015 | Gasket-refr Door,white ,magnetic (Replaces: 240390603) |
|
Immediately | $ 94.66 |
