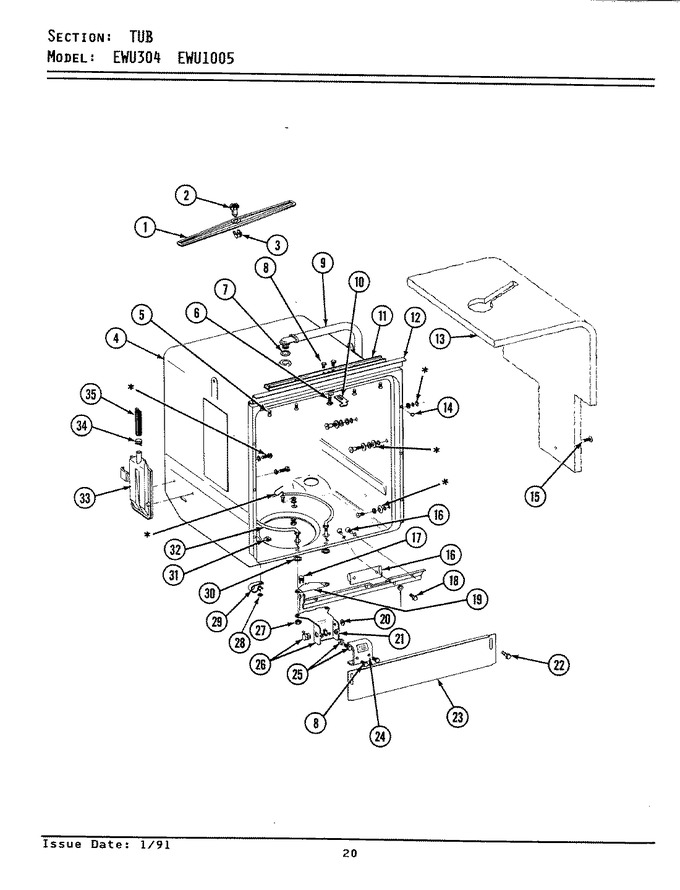

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	901433		Screw And Washer Assembly	00	Appelez-nous	-
2	912006		Washer	00	Appelez-nous	-
3	902887		Front Panel	00	Appelez-nous	-
4	912005		Grommet	00	Appelez-nous	-
5	912455		Insulation, Door	00	Appelez-nous	-
6	911875		Grounding Clip	00	Appelez-nous	-
7	WP4312464		Screw   (Replaces: 912197)	00			$ 6.26
8	911945		Trim Strip - Left Hand	00	Appelez-nous	-
9	912011		Screw----na	00	Appelez-nous	-
10	902164		Lower Trim Kit	00	Appelez-nous	-
11	911946		Filler For Front Panel	00	Appelez-nous	-
12	911928		Insert-white/black	00	Appelez-nous	-
13	911944		Trim Strip - Right Hand	00	Appelez-nous	-
14	911426		Access Panel Barrier	00	Appelez-nous	-
15	912457		Insulation, Access Panel	00	Appelez-nous	-
16	902798		Access Panel	00	Appelez-nous	-
17	910646		Fastener	00	Appelez-nous	-
18	911814		Screw	00	Appelez-nous	-
19	W11233072		Screw   (Replaces: 910647)	00		Immediately	$ 12.62
20	911947		Filler For Access Panel	00	Appelez-nous	-
21	911929		Insert-white/black	00	Appelez-nous	-
22	911604		Trim For Access Panel	00	Appelez-nous	-
23	WP90767		Screw   (Replaces: 210587)	00		Immediately	$ 7.04
