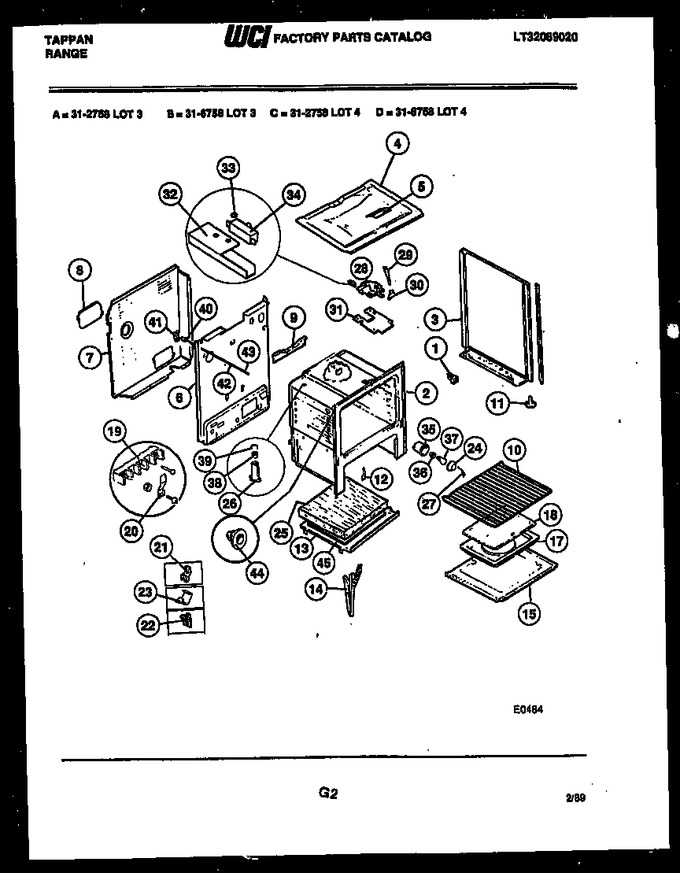

02 - Door Parts
03 - Cooktop Parts
04 - Broiler Parts
05 - Drawer Parts
06 - Body Parts
07 - Backguard
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051736 | Spacer, Bodyside (8) |
|
- | |||||
| 3 | 3200792 | Panel, Bodyside (lh) White |
|
- | |||||
| 3 | 3200794 | Panel, Bodyside, Lh (wheat) |
|
- | |||||
| 3 | 3200793 | Panel, Bodyside (lh), Almond |
|
- | |||||
| 4 | 3051109 | Burner Box |
|
- | |||||
| 5 | 3131101 | Cover, Plate |
|
- | |||||
| 6 | 3131567 | Back, Main |
|
- | |||||
| 7 | 3051400 | Shield-lwr Access |
|
- | |||||
| 8 | 3051501 | Cover-lwr Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 3131973 | Rack-oven |
|
- | |||||
| 11 | 636M004P01 | Screw, Level (4) |
|
- | |||||
| 12 | 3131570 | Cvr-hng Cutout |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lwr |
|
- | |||||
| 14 | 3131569 | Channel-door Hng (2) |
|
- | |||||
| 15 | 3051104 | Bottom, Oven |
|
- | |||||
| 17 | 539T010F01-86 | Broiler Pan |
|
- | |||||
| 18 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 19 | 709T031P01 | Terminal Block |
|
- | |||||
| 20 | 711T048P01 | Ground Strap |
|
- | |||||
| 21 | 3011805 | Clip-thermal Bulb (2) |
|
- | |||||
| 22 | 3051162 | Glide-drawer (2) |
|
Immediately | $ 8.22 | ||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 3131298 | Glass-ovn Lite Lens |
|
- | |||||
| 25 | 3200847 | Insulation, Lower |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3131104 | Wire, Glass Retainer |
|
- | |||||
| 28 | 3015361 | Latch Door |
|
- | |||||
| 29 | 3051473 | Handle, Latch |
|
- | |||||
| 30 | 358T158P02 | Knob, Latch |
|
- | |||||
| 31 | 3051413 | Shield-latch |
|
- | |||||
| 32 | 3131593 | Shield, Bi Metal Latch |
|
- | |||||
| 33 | 241T001P01 | Fastener, Push On (3) |
|
- | |||||
| 34 | 3131672 | Switch, Latching |
|
- | |||||
| 35 | 3131363 | Tube-ovn Light |
|
- | |||||
| 36 | 662T042P01 | Socket-ovn Light |
|
- | |||||
| 37 | 374T018P05 | Light Bulb, Oven |
|
- | |||||
| 38 | 244T041P01 | Filter, Catalyst |
|
- | |||||
| 39 | 612T079P01 | Retainer, Catalyst |
|
- | |||||
| 40 | 3014246 | Switch Door |
|
- | |||||
| 40 | 3202622 | Switch-door |
|
- | |||||
| 41 | 3131289 | Brkt-lt Sw. |
|
- | |||||
| 42 | 3051495 | Rod, Light |
|
- | |||||
| 43 | 174T329P01 | Cover, Rod |
|
- | |||||
| 44 | 102T044P02 | Button-remote Lt Switch |
|
- | |||||
| 45 | 3200848 | Shield-heat Lwr |
|
- | |||||
| *19209 | 3200846 | Fastener-edge Mtg (2) |
|
- | |||||
| *19209 | 3200833 | Insulation, Wrap |
|
- | |||||
| *19209 | 3200834 | Shield Heat Bodyside (2) |
|
- | |||||
| *19209 | 3131305 | Insulation, Touch |
|
- | |||||
| 27A | 3131304 | Insulation-top (non-illustrated) |
|
- | |||||
| 27B | 3131303 | Insulation, Back (non-illustrated) |
|
- | |||||
| 27C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 30A | 636T144P01 | Screw, Set, Latch Knob (non-illustrated) |
|
- | |||||
| 3A | 3200790 | Panel, Bodyside (rh), Almond |
|
- | |||||
| 3A | 3200791 | Panel, Bodyside, Rh (wheat) |
|
- | |||||
| 3A | 3200789 | Panel, Bodyside (rh) White |
|
- |
