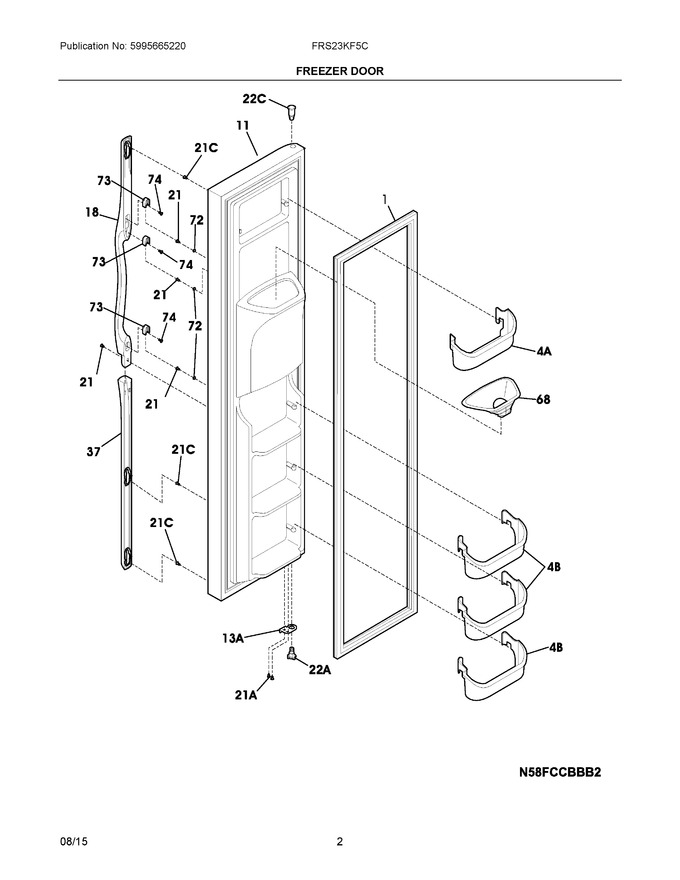

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-frzr Door, White (Replaces: 240390604) |
|
$ 93.12 | |||||
| 11 | 240451826 | Door-frzr, Bisque, Complete Assy |
|
- | |||||
| 18 | 240359109 | Handle-door, Bisque |
|
- | |||||
| 21 | 218781101 | Screw, Pan Head, 8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 37 | 240359204 | Trim-handle, 30.13", Bisque, Lower |
|
$ 33.44 | |||||
| 68 | 240465801 | Chute-ice |
|
- | |||||
| 72 | 240421701 | Button-handle Mtg, Dovetail |
|
$ 14.81 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 13A | 5303918455 | Door Stop, Bisque, Frzr (Replaces: 240537104) |
|
$ 142.04 | |||||
| 21A | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 21C | 240521302 | Screw, #8-18 X 3/4 |
|
$ 8.19 | |||||
| 22A | 242000501 | Bearing-hinge, Closer (Replaces: 240328202) |
|
$ 7.14 | |||||
| 22C | 240328402 | Bearing-hinge, Upper |
|
$ 19.85 | |||||
| 4A | 240367301 | Bin-door, Frzr-upper |
|
Immediately | $ 44.68 | ||||
| 4B | 240359001 | Bin-door |
|
Immediately | $ 68.11 | ||||
| NI | 240545201 | Connector-water, Straight (Replaces: 240545101) |
|
$ 73.71 | |||||
| NI | 5304521763 | Harness-wiring, Door (Replaces: 240552101) |
|
$ 85.69 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 |
