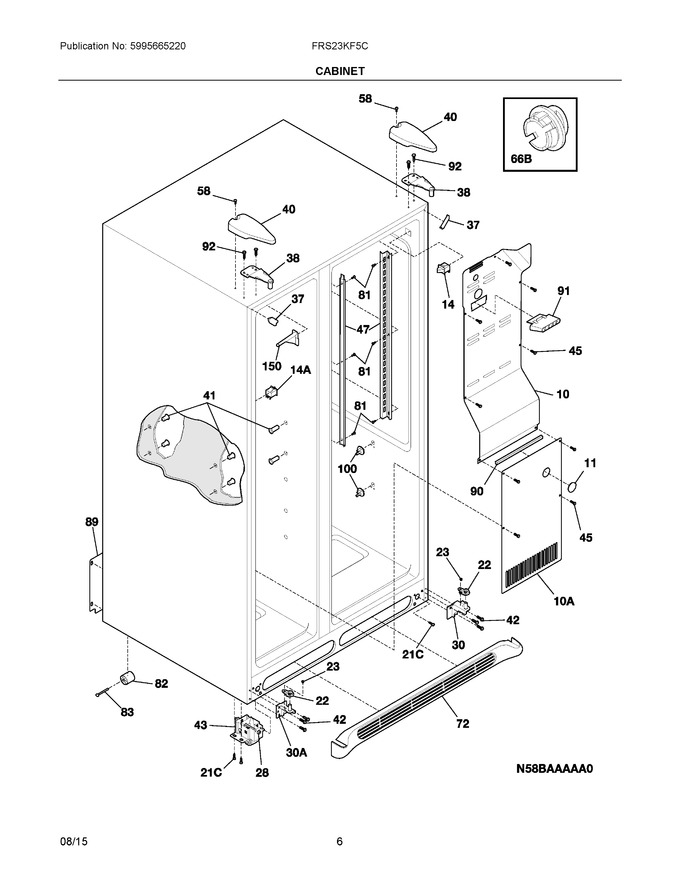

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 240435903 | Cover-air Duct |
|
$ 82.32 | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 14 | 240505801 | Switch, Light/lamp |
|
$ 66.63 | |||||
| 22 | 240457701 | Plate-door Closer |
|
Immediately | $ 56.70 | ||||
| 23 | 240402701 | Screw-#10-32 X 1/4 Flat Hd |
|
$ 21.79 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335501) |
|
Immediately | $ 31.33 | ||||
| 30 | 5303918455 | Bracket-lower Hinge, Ref (Replaces: 240419103) |
|
$ 142.04 | |||||
| 37 | 242161201 | Trim-cabinet Corner, White, (2) (Replaces: 240337601) |
|
Immediately | $ 2.93 | ||||
| 38 | 240327207 | Bracket-upper Hinge (Replaces: 240327202) |
|
Immediately | $ 57.50 | ||||
| 40 | 240327005 | Cover-upper Hinge, White |
|
$ 61.03 | |||||
| 41 | 241550801 | Grommet-shelf Mtg, 1.40" Long (Replaces: 240358701) |
|
$ 63.70 | |||||
| 42 | 240578902 | Screw-hinge Mtg, Hex Head, 1/4-20 X 5/8 (Replaces: 240578901) |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy, Front, (2) (Replaces: 240335003) |
|
Immediately | $ 31.33 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 0.500 (Replaces: 241500301) |
|
Immediately | $ 4.55 | ||||
| 47 | 218659500 | Channel-shelf Mtg, Side, (2) |
|
$ 121.38 | |||||
| 58 | 218781101 | Screw, Pan Head, 8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 72 | 240324401 | Grille/kickplate, White |
|
- | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin (Replaces: 5303316859) |
|
Immediately | $ 35.34 | ||||
| 89 | 241733901 | Cover, Access, System Compt, With Label (Replaces: 240326103) |
|
Immediately | $ 52.92 | ||||
| 90 | 218249807 | Seal-coil Cover |
|
- | |||||
| 91 | 240380101 | Duct-ice Maker |
|
$ 75.08 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg (Replaces: 216850900) |
|
$ 13.46 | |||||
| 100 | 241993101 | Support, Crisper Cover, Front, (4) (Replaces: 240423701) |
|
Immediately | $ 5.62 | ||||
| 150 | 240368701 | Guide-control Bulb |
|
- | |||||
| 10A | 240475903 | Cover-evap Coil, Lower |
|
- | |||||
| 14A | 241547902 | Switch-light/lamp (Replaces: 215486600) |
|
Immediately | $ 23.25 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 30A | 5303918455 | Bracket-lower Hinge (Replaces: 240419104) |
|
$ 142.04 | |||||
| 66B | 240374301 | Diffuser-air |
|
$ 77.26 | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| NI | 218515401 | Clip |
|
$ 17.72 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| NI | 240481601 | Shim-lower Hinge |
|
$ 26.75 | |||||
| NIA | 241993001 | Support, Crisper Cover, Rear, (4) (Replaces: 240350802) |
|
Immediately | $ 19.23 | ||||
| NIA | 241550701 | Grommet-shelf Mtg, .875" Long (Replaces: 240358801) |
|
$ 18.20 | |||||
| NIBA | 240518802 | Pin-push, Push-in, Plastic |
|
$ 16.30 |
