01 - Body/oven
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

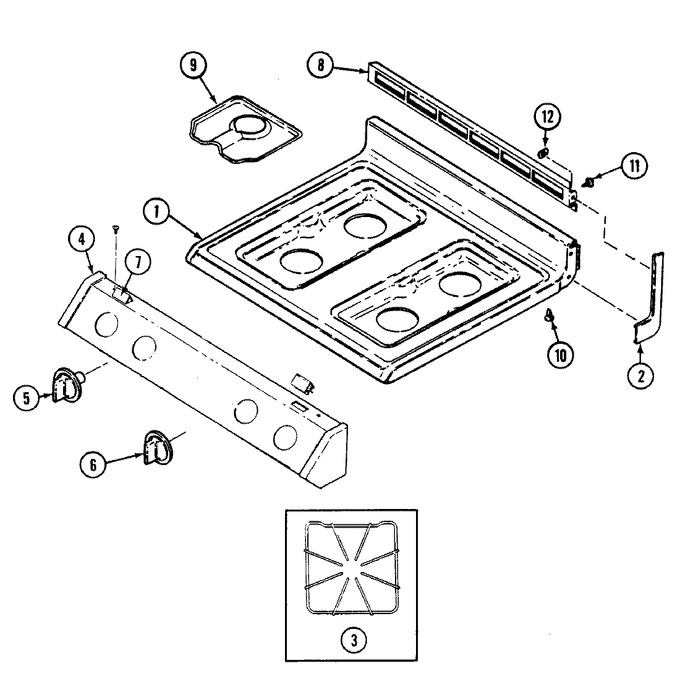

| 1 | 2001W082-81 | Top, Main (wht) | 01 |
|
- | ||||
| 2 | 7746P030-60 | End Cap (rt-blk) | 01 |
|
$ 26.16 | ||||
| 2 | 8270P095-60 | Tape, Double Sided | 01 |
|
- | ||||
| 2 | 7746P031-60 | End Cap (lt-blk) | 01 |
|
$ 26.25 | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 7712P134-60 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 4 | 7101P311-60 | Screw----na | 01 |
|
- | ||||
| 5 | 7731P071-60 | Knob, Thermostat (blk) | 01 |
|
$ 39.24 | ||||
| 6 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) | 01 |
|
$ 25.06 | ||||
| 7 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 8 | 3608F042-09 | Trim, Vent (blk) | 01 |
|
- | ||||
| 9 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 10 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 11 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 01 |
|
$ 11.92 | ||||
| 12 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 01 |
|
$ 7.68 |
