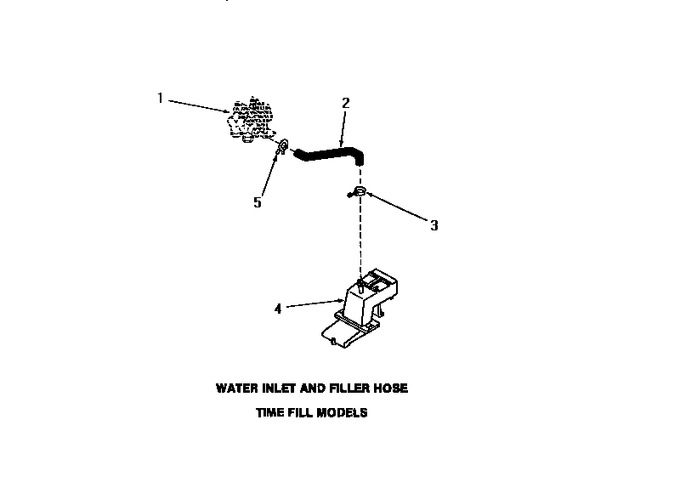

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Mixing Valve Assembly		Appelez-nous	-
2	25822		Hose,filler		Appelez-nous	-
3	WP596669		Hose Clamp   (Replaces: 25988)			Immediately	$ 7.56
4	23327		Assy,water Inlet		Appelez-nous	-
5	80479		Hose Clamp		Appelez-nous	-
	NOTE:		Although These Mixing Valves Differ In Appearance, They Are Completely Interchangeable, As Complete Assemblies, When Identified By The Same Part Number. Use C		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
