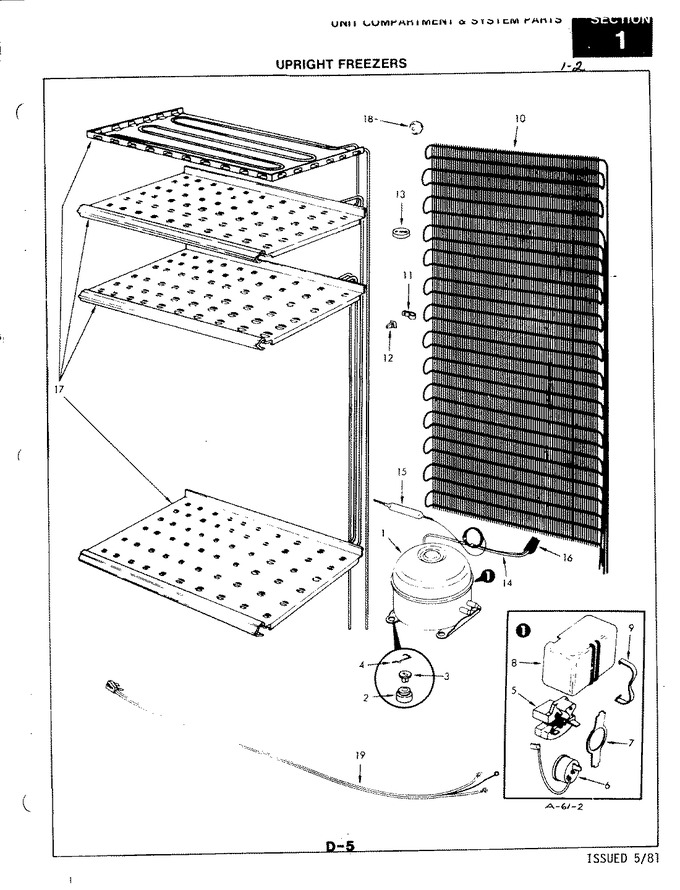

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door
02 - Freezer Compartment
03 - Unit Compartment & System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | FFC60BK | Compressor (Replaces: RA949T) |
|
$ 750.38 | |||||
| 2 | 17245-3 | Grommet |
|
- | |||||
| 3 | 52656-2 | Plug, Compressor |
|
- | |||||
| 4 | 55624-1 | Clip |
|
- | |||||
| 5 | 63293-1 | Relay, Start |
|
- | |||||
| 6 | 63294-1 | Overload |
|
- | |||||
| 7 | 63295-1 | Clip |
|
- | |||||
| 8 | 63296-1 | Cover |
|
- | |||||
| 9 | 63297-1 | Clip |
|
- | |||||
| 10 | RA43615-43 | Condenser |
|
- | |||||
| 10 | WP489478 | Screw, Kickplate Mtg. (Replaces: 9986-101) |
|
$ 6.98 | |||||
| 11 | 22504-1 | Clamp |
|
- | |||||
| 12 | 56231-1 | Nylon Nut, Clamp Mtg. |
|
- | |||||
| 13 | 63406-1 | Cushion |
|
- | |||||
| 14 | RA43605-48 | Heat Exchanger |
|
- | |||||
| 15 | WPW10143759 | Drier (Replaces: 13900) |
|
Immediately | $ 27.70 | ||||
| 16 | 26275-15 | Insulation |
|
- | |||||
| 17 | RA43649-41 | Frzr Shelf |
|
- | |||||
| 18 | 55751-1 | Grommet |
|
- | |||||
| 19 | 52876-7 | Wire Harness |
|
- | |||||
| 19 | RA43683-1 | Flange Heater |
|
- |
