SELECT A DIAGRAM

01 - Freezer Compartment

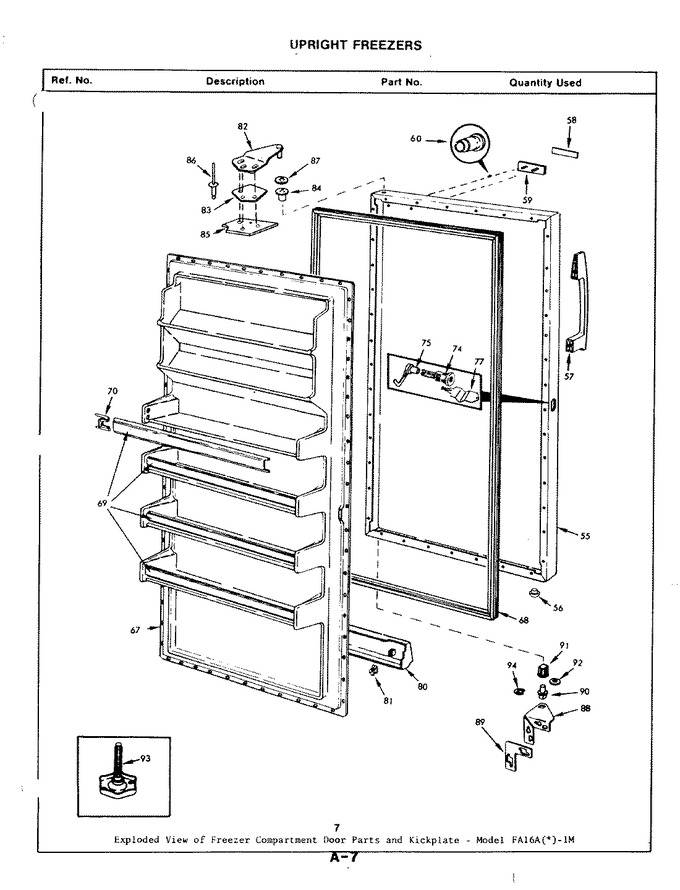

02 - Freezer Door


03 - Screws & Miscellaneous


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
55	53845-37-WW		Outer Panel		Appelez-nous	-
56	495034-900		Plug Button, Door		Appelez-nous	-
57	420063-1		Washer		Appelez-nous	-
57	56733-13		Handle		Appelez-nous	-
58	63566-1		Insert		Appelez-nous	-
59	63565-1		Bezel		Appelez-nous	-
60	23511-4		Mtg Clip		Appelez-nous	-
67	27445-10		Inner Panel		Appelez-nous	-
68	56287-6		Seal		Appelez-nous	-
69	57209-32		Trim		Appelez-nous	-
70	55556-1		Trim Lock		Appelez-nous	-
82	53709-10		Hinge		Appelez-nous	-
83	57397-1		Shim		Appelez-nous	-
84	55781-1		Bushing		Appelez-nous	-
85	57396-1		Tapping Plate		Appelez-nous	-
86	WP210720		Rivet   (Replaces: 26397-6)				$ 12.14
87	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
88	53671-10		Hinge		Appelez-nous	-
89	53688-3		Spacer		Appelez-nous	-
90	53672-1		Pin, Lower Hinge		Appelez-nous	-
91	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
92	54233-1		Washer				$ 7.71
93	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
94	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47

    View Diagram in Separate Window       Print Part List
