SELECT A DIAGRAM

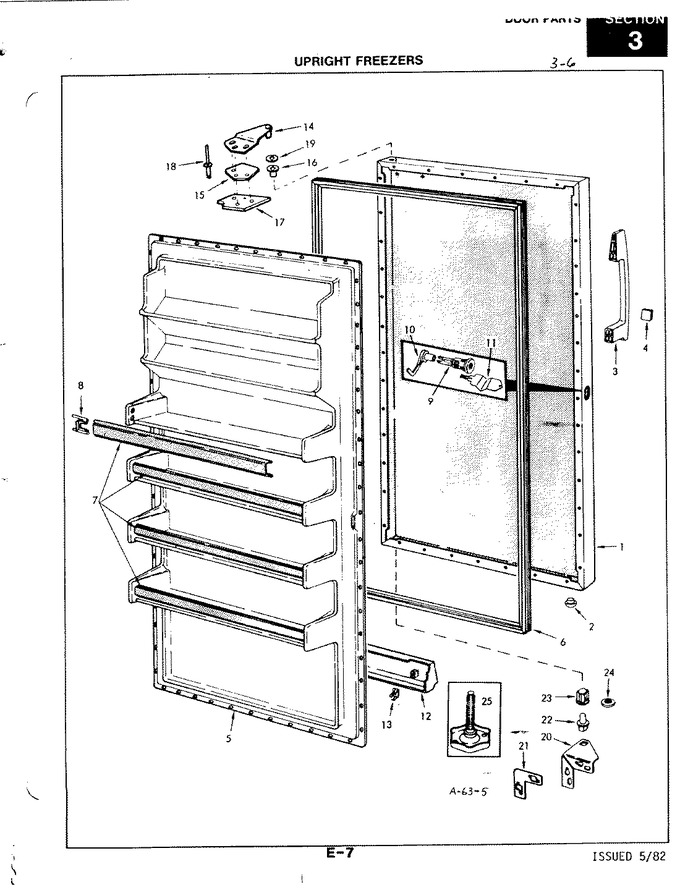

01 - Door


02 - Freezer Compartment


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	55625-23-WW		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	56733-13		Handle		Appelez-nous	-
4	420063-1		Washer		Appelez-nous	-
4	59631-2		Nameplate		Appelez-nous	-
5	53730-25		Inner Panel		Appelez-nous	-
5	9986-12		Screw,door Liner		Appelez-nous	-
6	56287-8		Seal		Appelez-nous	-
7	57209-44		Trim		Appelez-nous	-
8	55556-1		Trim Lock		Appelez-nous	-
9	59995-3		Lock Barrel		Appelez-nous	-
10	54881-1		Bolt		Appelez-nous	-
11	62027-1		Key		Appelez-nous	-
12	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
12	56477-7		Kickplate		Appelez-nous	-
13	52854-3		Clip, Kickplate		Appelez-nous	-
14	53709-18		Door Hinge, Upper		Appelez-nous	-
14	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
15	65031-1		Shim, Upper Hinge		Appelez-nous	-
16	55781-1		Bushing		Appelez-nous	-
17	57396-1		Tapping Plate		Appelez-nous	-
18	WP210720		Rivet   (Replaces: 26397-6)				$ 12.14
19	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
20	403062-1		Screw		Appelez-nous	-
20	53671-10		Hinge		Appelez-nous	-
21	53688-3		Spacer		Appelez-nous	-
22	53672-1		Pin, Lower Hinge		Appelez-nous	-
23	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
24	54233-1		Washer				$ 7.71
25	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61

    View Diagram in Separate Window       Print Part List
