SELECT A DIAGRAM

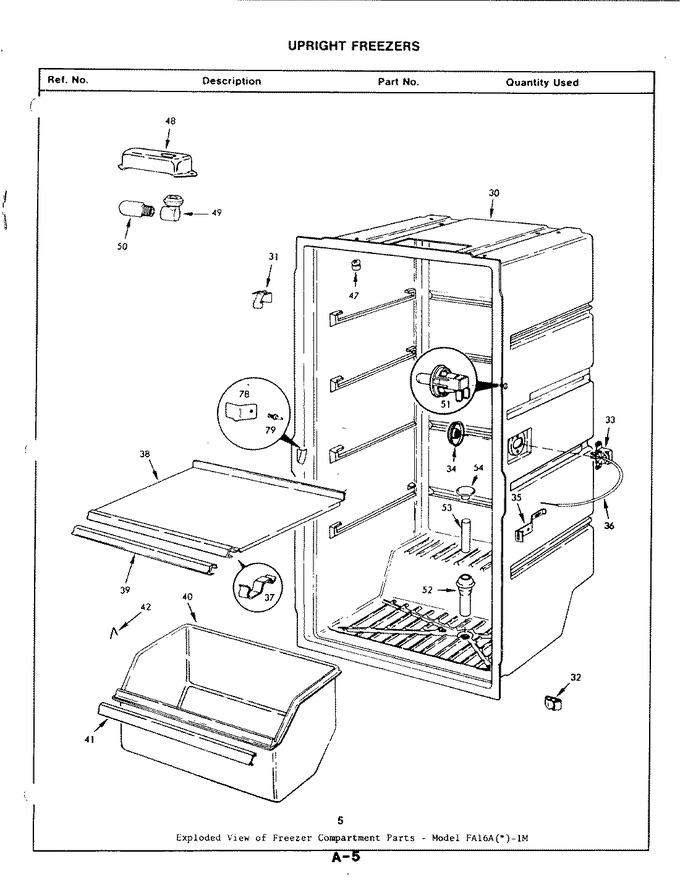

01 - Freezer Compartment


02 - Freezer Door


03 - Screws & Miscellaneous


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	57353-1		Food Liner		Appelez-nous	-
31	54576-1		Clip		Appelez-nous	-
32	58083-1		Clip		Appelez-nous	-
33	52881-21		Control, Temperature		Appelez-nous	-
34	26621-27		Knob		Appelez-nous	-
35	57311-1		Bracket		Appelez-nous	-
36	4008-13		Tubing		Appelez-nous	-
37	54667-1		Clip		Appelez-nous	-
38	53743-21		Frzr Shelf		Appelez-nous	-
39	53752-36		Trim		Appelez-nous	-
40	53757-3		Drawer		Appelez-nous	-
41	56421-14		Trim		Appelez-nous	-
42	53935-1		Clip		Appelez-nous	-
47	56142-8		Nut		Appelez-nous	-
48	54666-1		Housing		Appelez-nous	-
49	27659-3		Lamp Holder		Appelez-nous	-
50	WPA3073101		Bulb   (Replaces: 20174-2)			Immediately	$ 10.90
51	56432-2		Switch		Appelez-nous	-
52	54531-4		Grommet		Appelez-nous	-
53	54680-3		Drain Tube		Appelez-nous	-
54	60321-1		Plug		Appelez-nous	-
54	27263-1		Clip		Appelez-nous	-
78	55395-4		Lock Plate		Appelez-nous	-
79	59920-1		Stud, Mounting Coil Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
