01 - 23907 & 24304 Pump Assemblies


02 - 24596 & 24597 Mixing Valve Assemblies


03 - 25178 Pump Assy


04 - 25832 & 25833 Mixing Valve Assemblies


05 - Accessories


06 - Agitator Post & Spin Tub


07 - Agitator, Shaft & Fabric Softener Disp


08 - Bleach Dispenser


09 - Boot, Chassis & Drain Tub


10 - Cabinet Top & Loading Door


11 - Control Hood


12 - Control Panel & Controls


13 - Counterbalance Weight, Brkt & Mtg Plate


14 - Door Safety Switch


15 - Drain


16 - Main Bearing Assy


17 - Mixing Valves


18 - Motor & Fluid Drive


19 - Panel Supp Plate, Ctrl Hood Ends & Bulb


20 - Panels


21 - Power Cord, Wire & Terminals


22 - Reservoir & Drain Valve


23 - Reservoir & Drain Valve


24 - Transmission Assy


25 - Water Inlet & Filler Hose


26 - Water Inlet & Filler Hose

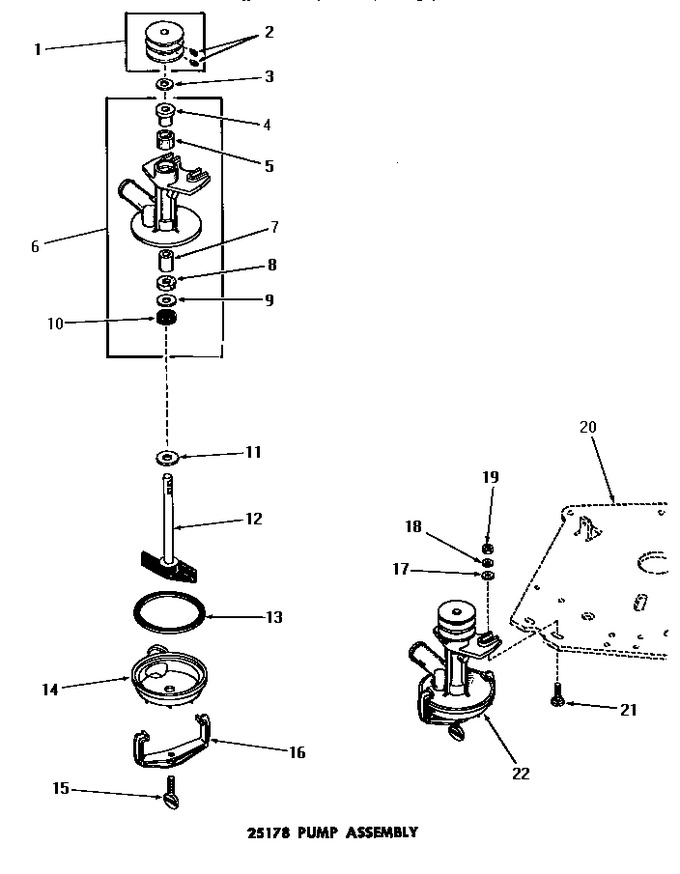

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23770		Assy,pulley		Appelez-nous	-
2	02771		Screw,1/4-20x3/8 Hex S		Appelez-nous	-
3	20098		Washer,.440idx7/8odx1/		Appelez-nous	-
4	20072		Bearing		Appelez-nous	-
5	26479		Wick		Appelez-nous	-
6	20763		Pump Body		Appelez-nous	-
7	20071		Bearing		Appelez-nous	-
8	20094		Packing Material		Appelez-nous	-
9	20093		Washer,29/64idx63/64od		Appelez-nous	-
10	20095		Seal		Appelez-nous	-
11	20099		Washer,.440idx1.125odx		Appelez-nous	-
12	22232		Assy,impeller   (Replaces: 04372)		Appelez-nous	-
13	20097		Gasket		Appelez-nous	-
14	04316		Bottom,pump		Appelez-nous	-
15	20161		Screw,5/16-18 X 1-1/16		Appelez-nous	-
16	20066		Clamp,pump		Appelez-nous	-
17	20176		Washer,.2656idx9/16odx		Appelez-nous	-
18	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
19	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
20	Y00000000		See Note Mounting Plate		Appelez-nous	-
21	24390		Bolt		Appelez-nous	-
22	25178		Assy,pump		Appelez-nous	-
NI	131P3		Kit,pump Kt85				$ 49.99
