SELECT A DIAGRAM

01 - 25832 & 25833 Mixing Valve Assemblies


02 - Accessories


03 - Agitator Post & Spin Tub


04 - Agitator, Shaft & Fabric Softener Disp


05 - Bleach Dispenser


06 - Boot, Chassis & Drain Tub

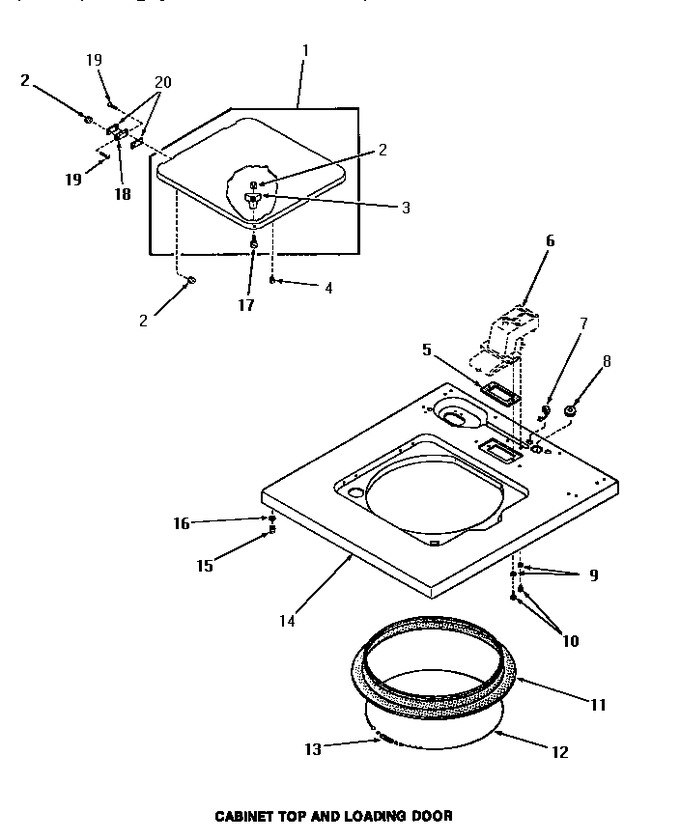

07 - Cabinet Top & Loading Door


08 - Cbal Weight, Brkt, Mtg Plt & Trans


09 - Control Hood


10 - Control Panel & Controls


11 - Door Safety Switch


12 - Drain


13 - Main Bearing Assy & Spin Belt


14 - Mixing Valve Assy


15 - Motor, Fluid Drive & Pump Belt


16 - Panels


17 - Power Cord, Wire & Terminals


18 - Pump Assy


19 - Transmission Assy


20 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	26901K		Loading Door, Coffee		Appelez-nous	-
1	26901H		Assy,lid & Catch		Appelez-nous	-
1	26901A		Loading Door, Avocado		Appelez-nous	-
1	26901C		Loading Door, Coppertone		Appelez-nous	-
1	26901L		Assy,lid & Catch		Appelez-nous	-
1	26901W		Assy,lid & Catch Xreplace		Appelez-nous	-
2	21752		Nut,8-32 Hex Brilock		Appelez-nous	-
3	25217		Catch,lid Switch		Appelez-nous	-
4	21176		Bumper		Appelez-nous	-
5	23255		Gasket		Appelez-nous	-
6	Y00000000		See Note Water Inlet		Appelez-nous	-
7	21903		Strain Relief		Appelez-nous	-
8	20118		Grommet,1982 Inv		Appelez-nous	-
9	20493		Washer,11/64idx3/8odx3		Appelez-nous	-
10	55469		Screw, 8b-16x5/8 Tap		Appelez-nous	-
11	25277		Guard, Rim		Appelez-nous	-
12	22352		Retainer,wire		Appelez-nous	-
13	20791		Spring		Appelez-nous	-
14	26819L		Assy,top		Appelez-nous	-
14	26819H		Cabinet Top, Harvest Gold		Appelez-nous	-
14	26819W		Cabinet Top, White		Appelez-nous	-
14	26819A		Cabinet Top, Avocado		Appelez-nous	-
14	26819K		Cabinet Top, Coffee		Appelez-nous	-
14	26819C		Cabinet Top, Coppertone		Appelez-nous	-
15	23007		Caged Nut		Appelez-nous	-
16	24861		Lockwasher,.448x.789sh		Appelez-nous	-
17	26769		Assy,screw & Washer		Appelez-nous	-
18	21583		Hinge				$ 36.99
19	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-
20	21584		Gasket				$ 22.99

    View Diagram in Separate Window       Print Part List
