| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

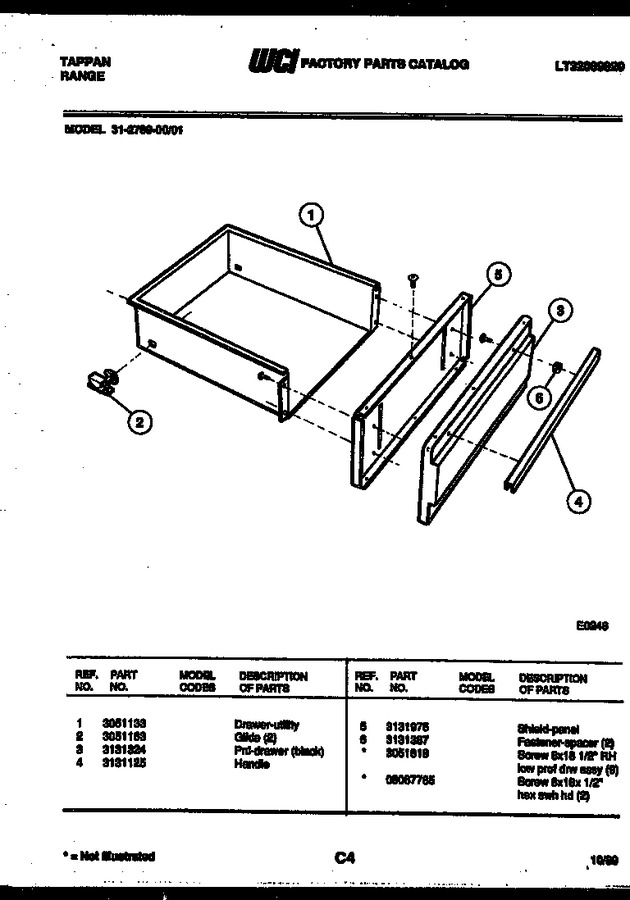

| 1 | 3051133 | Drawer, Utility |
|
- | |||||
| 2 | 3051163 | Glide (2) |
|
Immediately | $ 19.41 | ||||
| 3 | 3131324 | Pnl Drawer (black) |
|
- | |||||
| 4 | 3131125 | Handle |
|
- | |||||
| 5 | 3131975 | Shield-panel |
|
- | |||||
| 6 | 3131387 | Fastener-spacer (2) |
|
- | |||||
| *33242 | 08067785 | Screw 8 X 18 X 1/2`` Hex Swh Hd (2) |
|
- | |||||
| *33242 | 3051818 | Screw 8 X 18 1/2`` Rh Low Prof Drw Assy (9) |
|
- |
